Total time spent so far: 11hrs

29th July: Sch & PCB

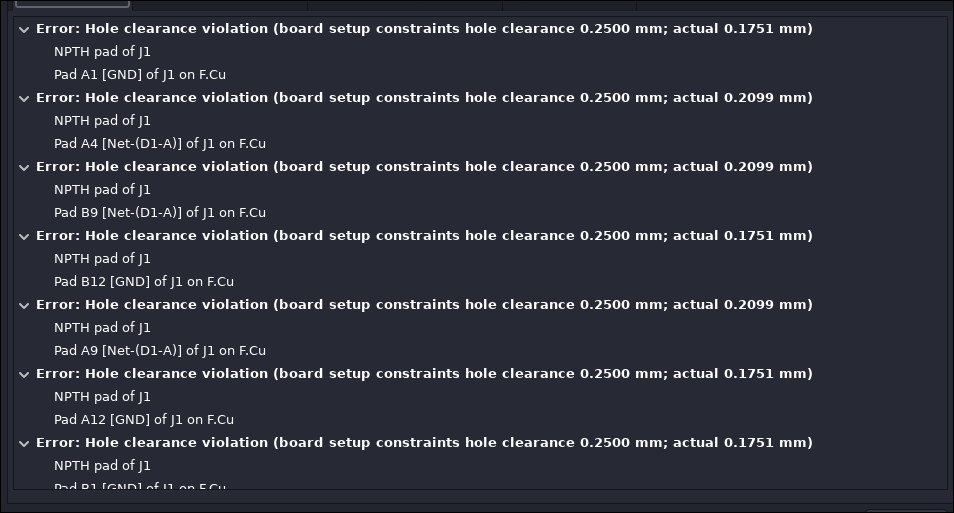

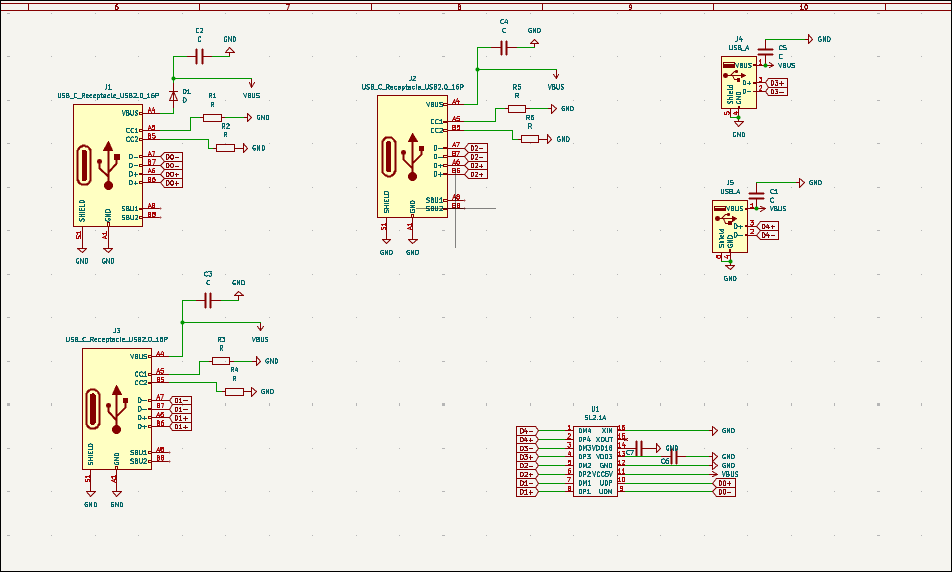

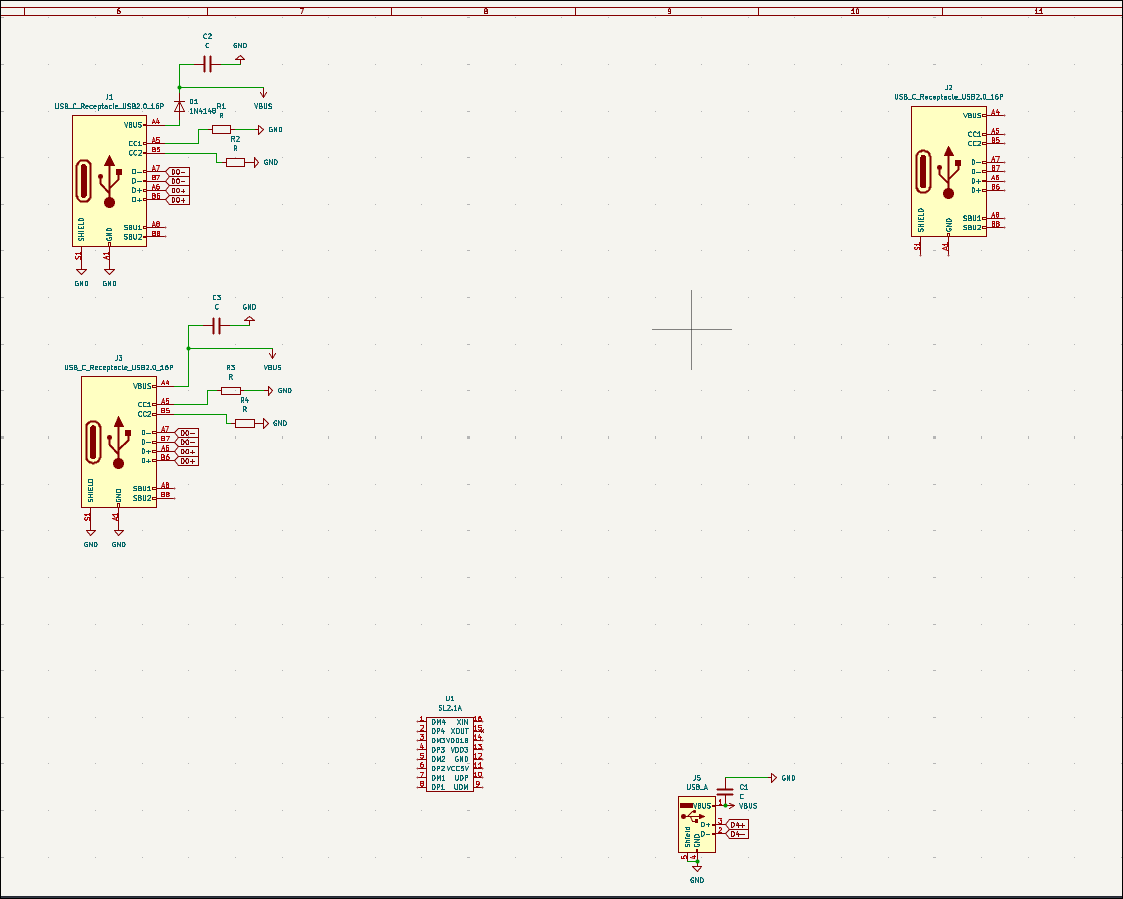

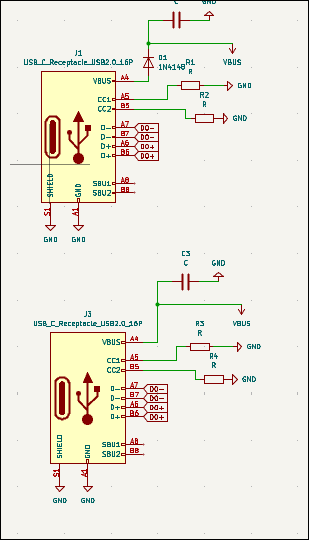

So, like I'm making this Usb-hub cause I just clicked that I have only 3 ports in my laptop, and two of em' are type-A and 1 is Type-C, And I have recently got my hackpad kit and built it and then I noticed that I don't have fucking ports in my laptop and now i'm just Sobbing. So, it's almost ending of highway but yea here it comes. Frist, Really thanks for the guide on jams.hackclub.com It really helped me through out the process. So, first I figured out how many ports do i need and all the other bare bone things, I asked hackclubbers and and they were really helpful. I don't know how to explain things in the written form but first I did the SCH and imported the libraries and yea it was really a headache. I'm adding the screenshots which i took during the process.

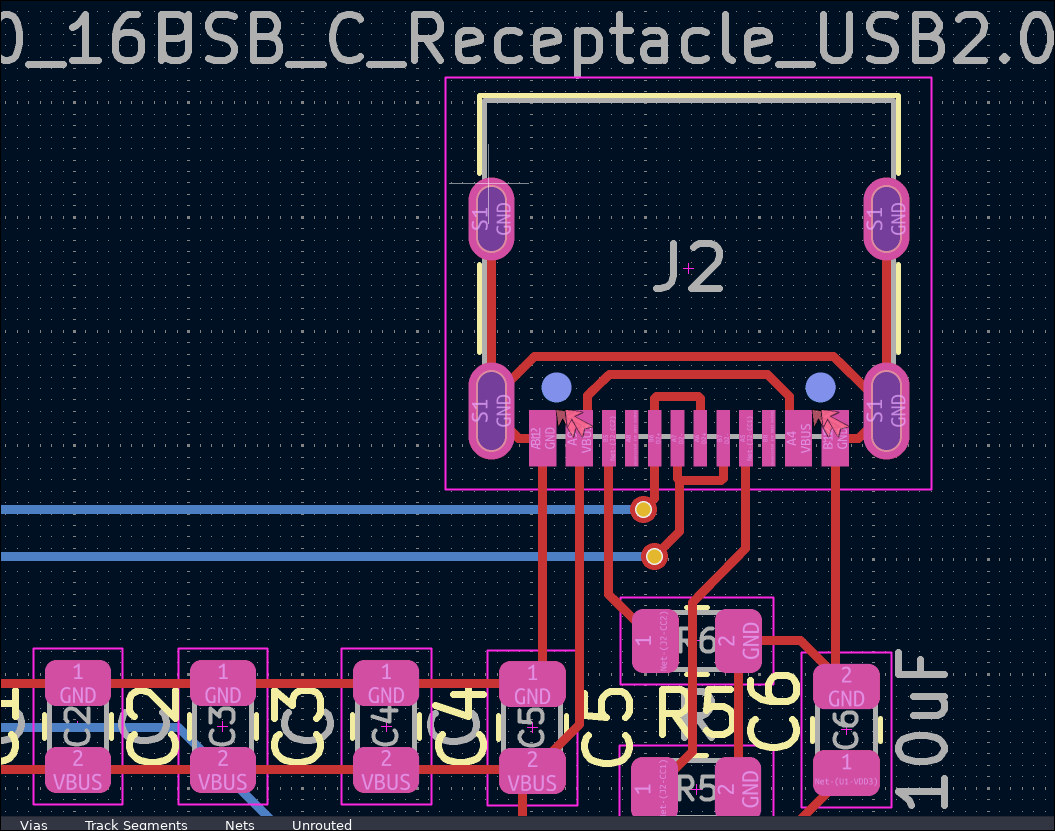

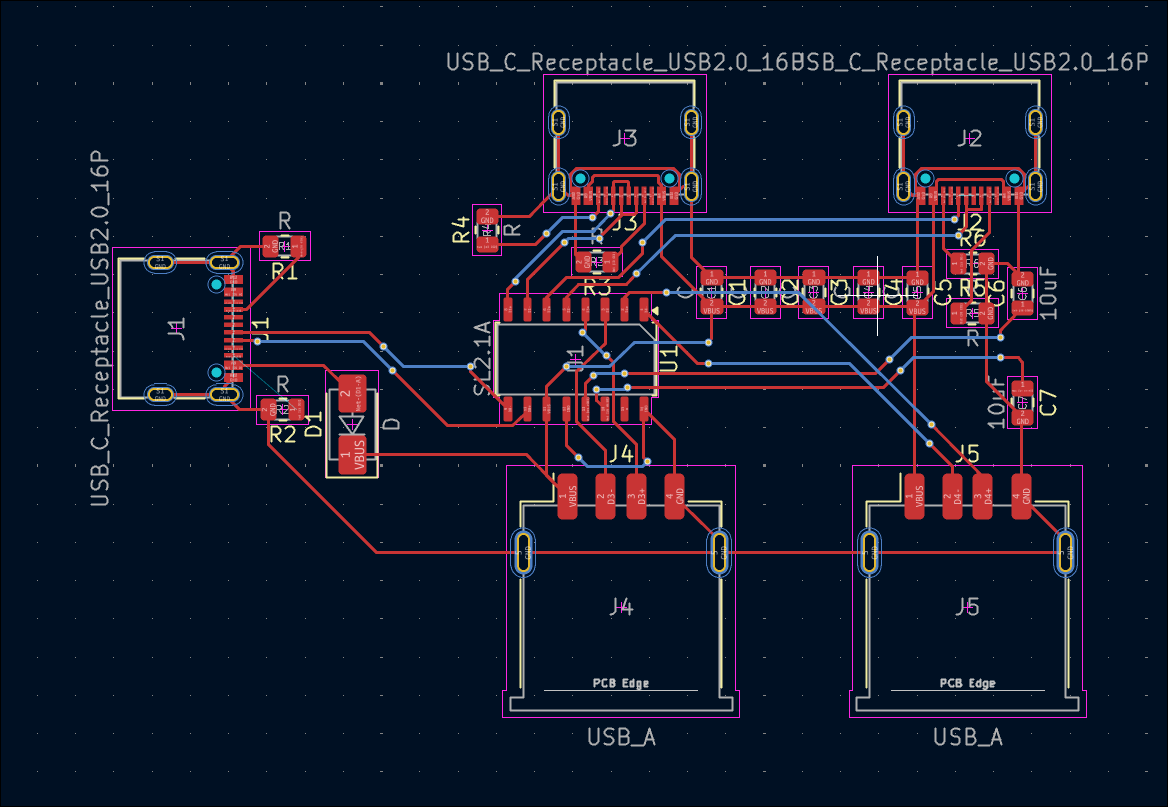

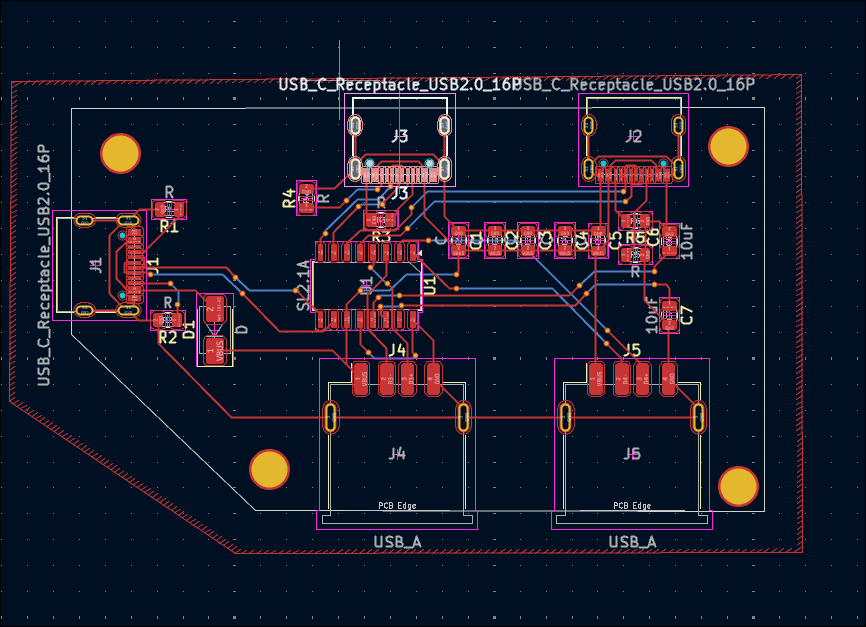

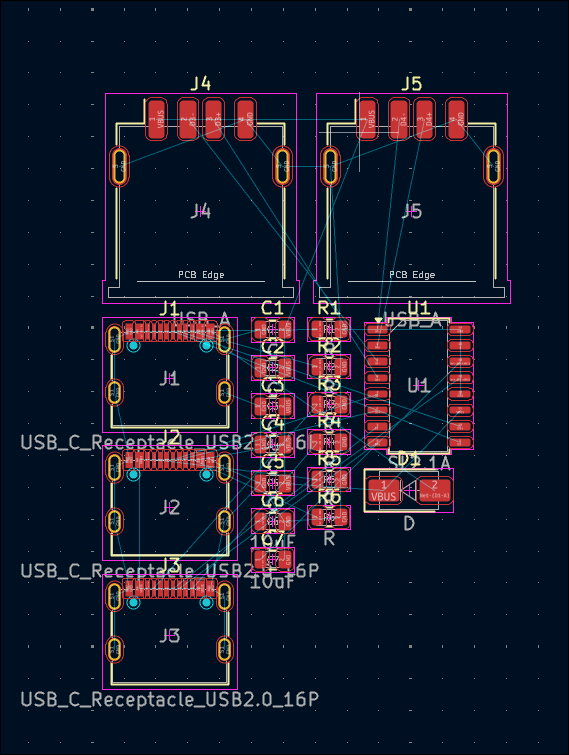

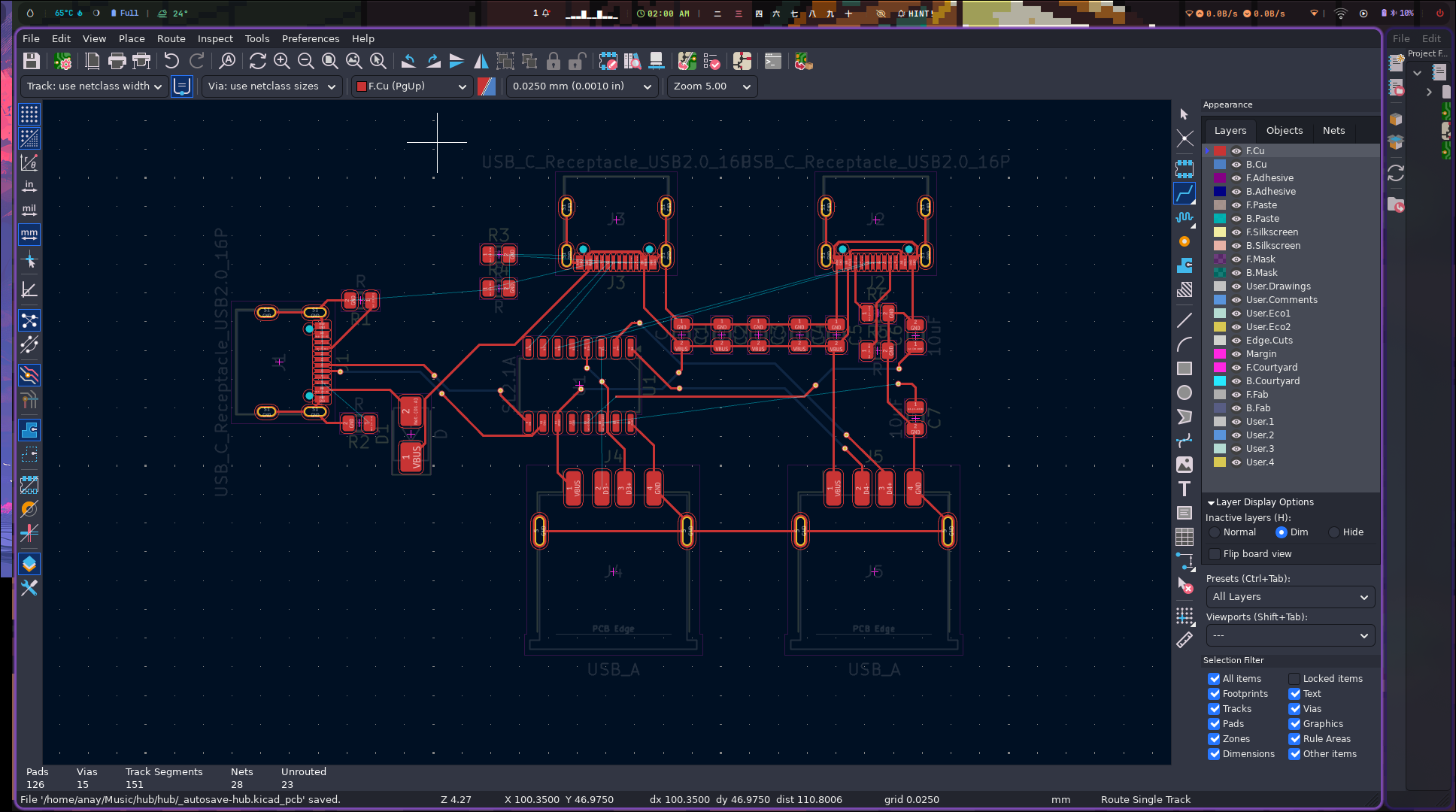

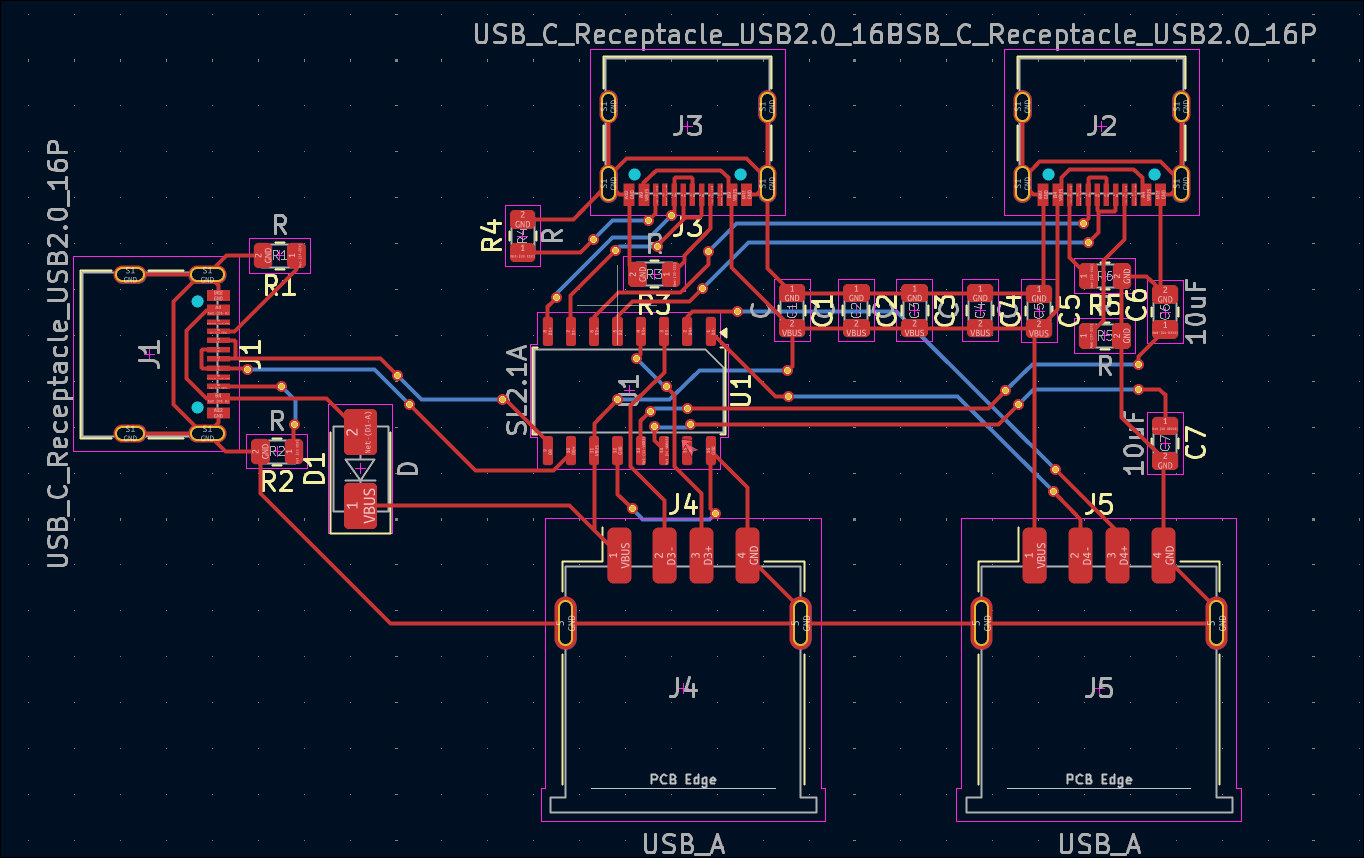

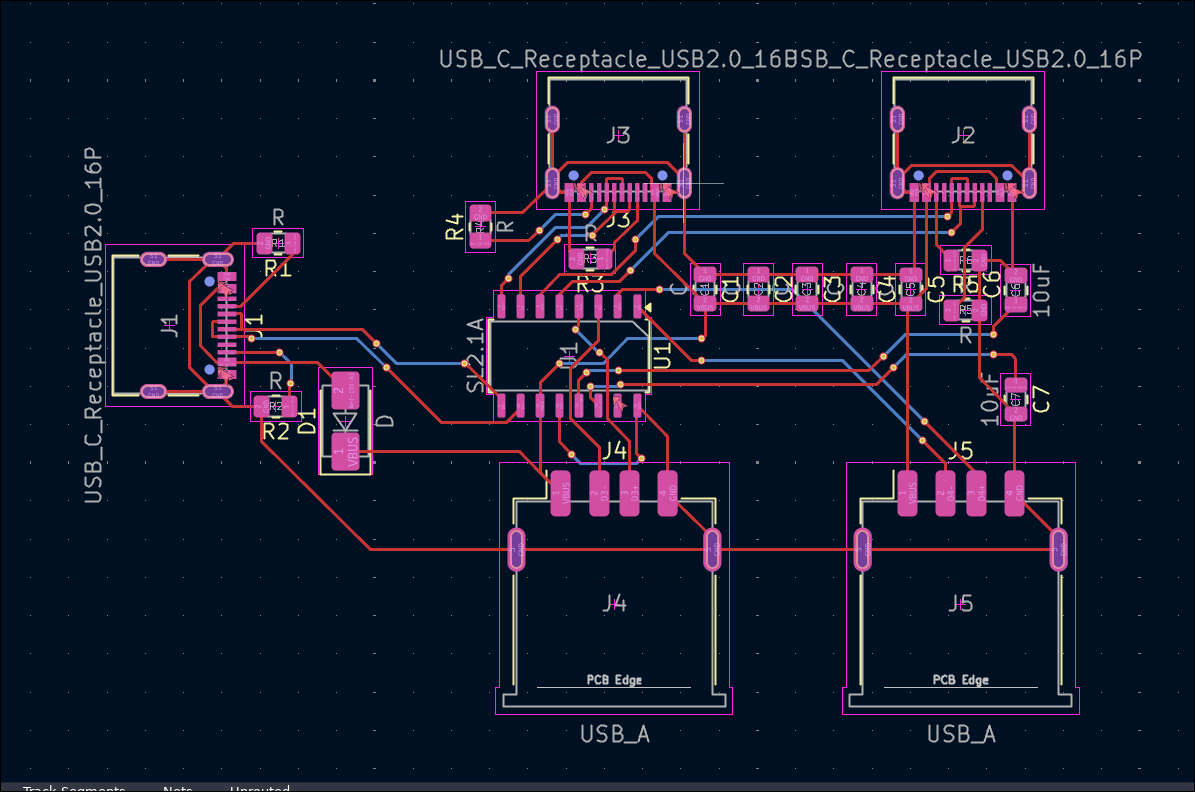

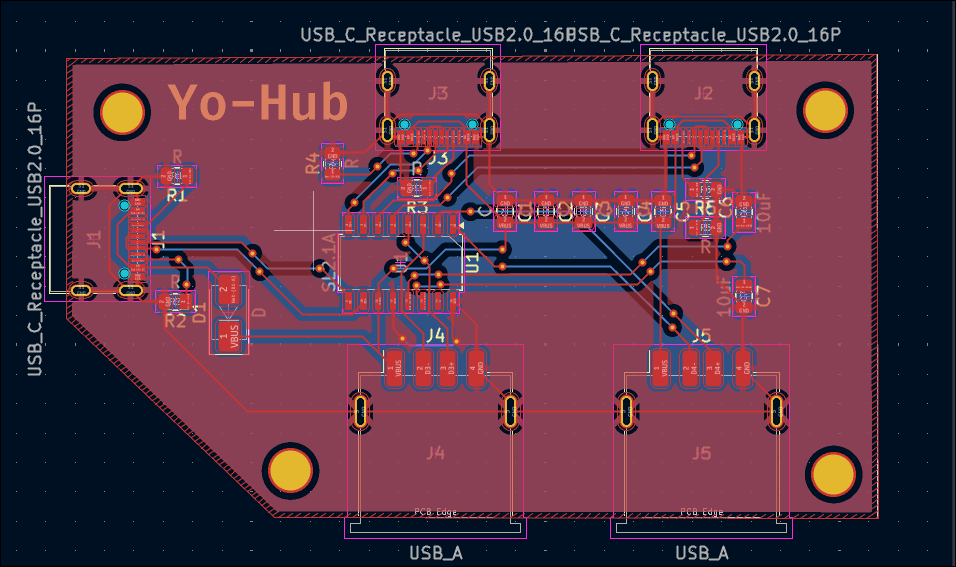

Alr so like it's raining heavyly raining in my area so, there is a off from school so maybe I can Complete it in a day, so yea , Then I started with the PCB and it was a mess like I had a ton of issues with wiring and all, but yea At the last I made through, i would say it was the most time consuming and most rewarding part So yea, Here are the screenshots of it. First I placed the parts like How i wanted em to be in the PCB and then I placed all the components. Here are the screenshots of it like sequence wise like from scrath to the final thing.

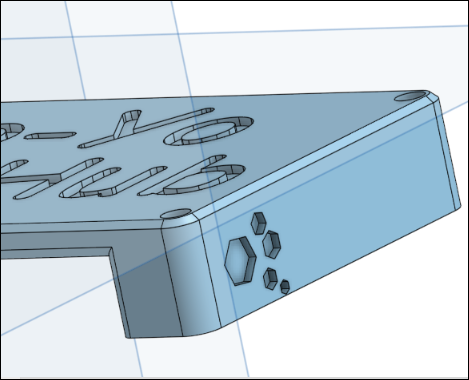

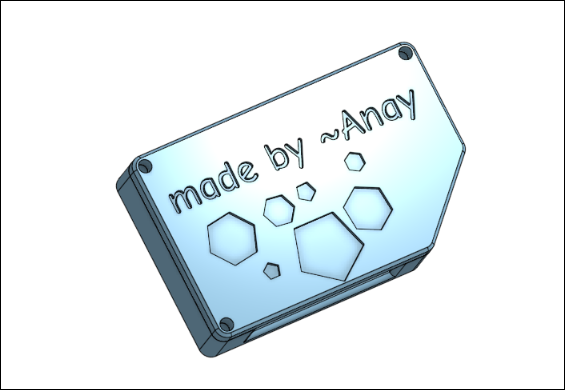

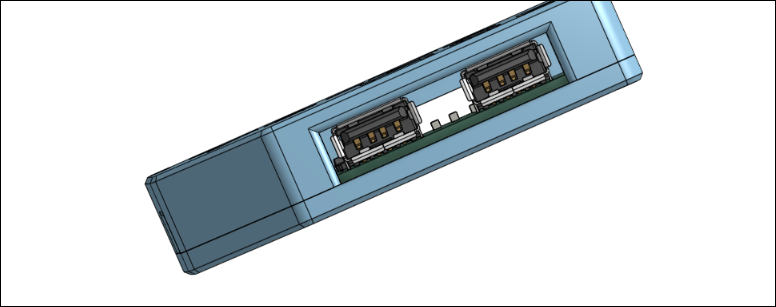

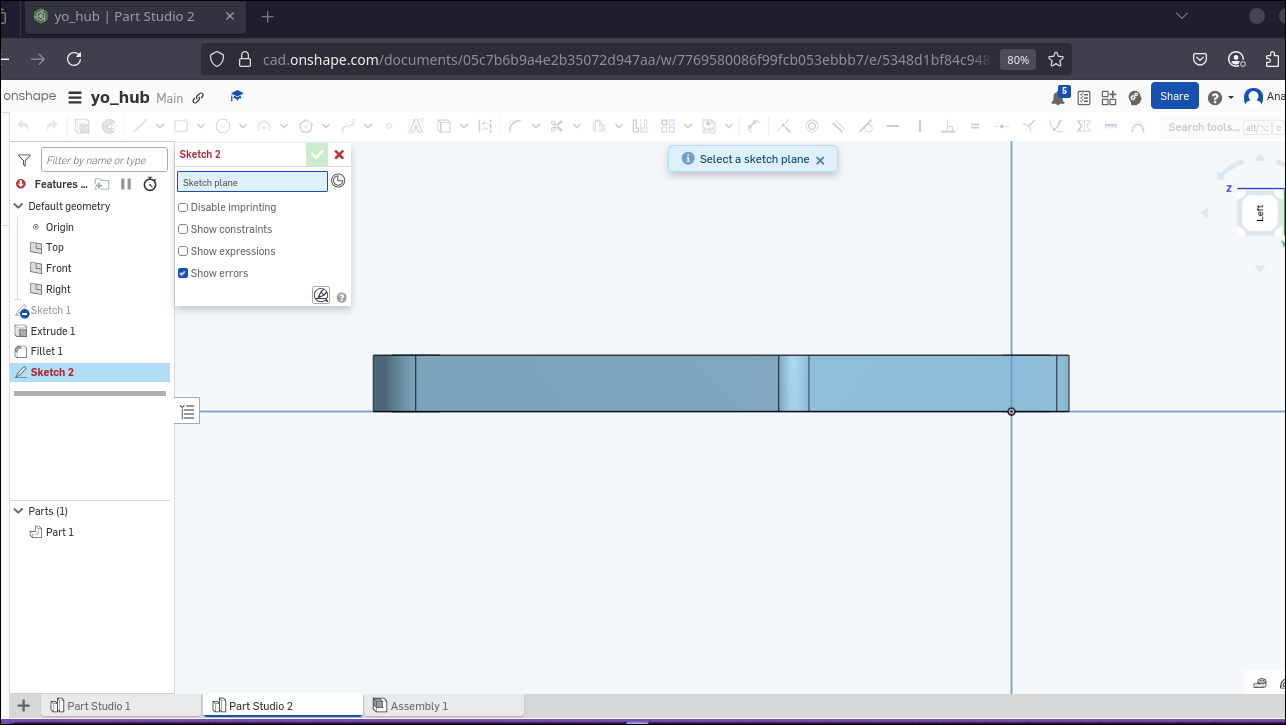

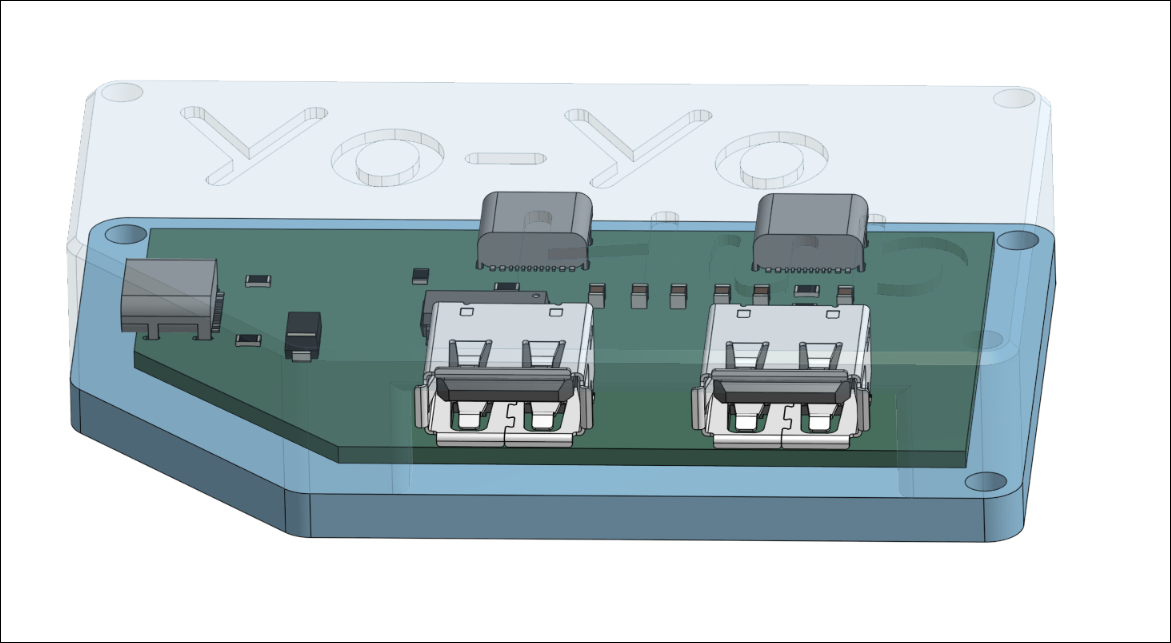

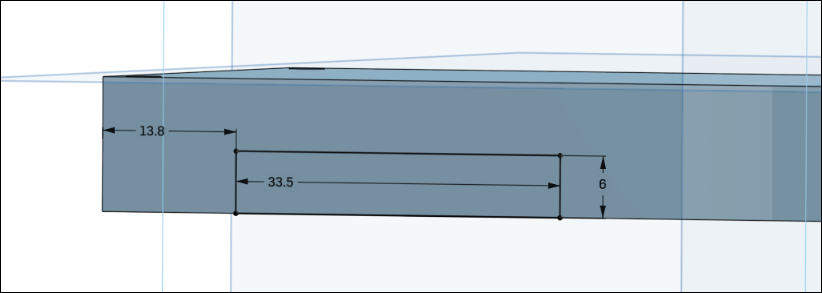

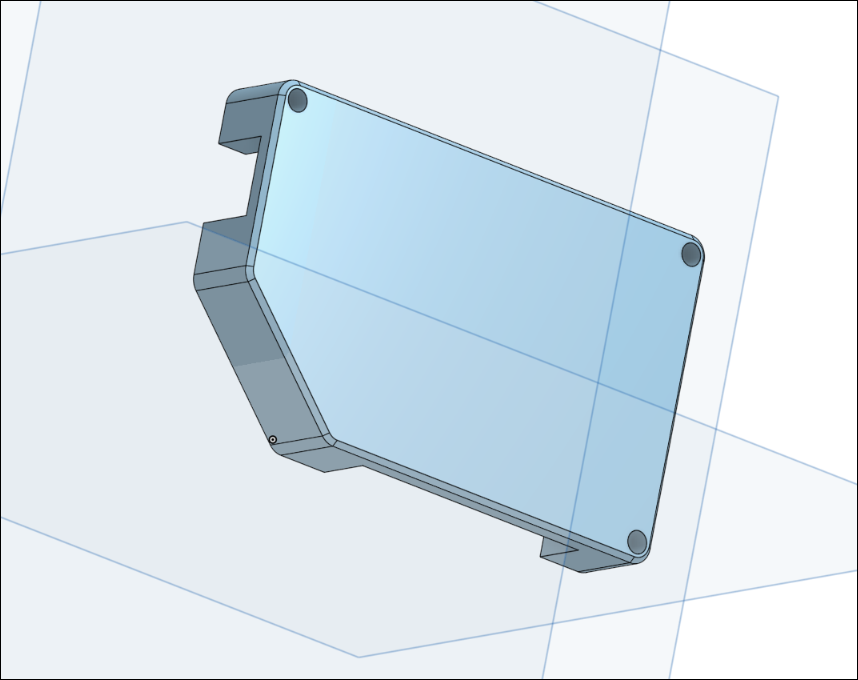

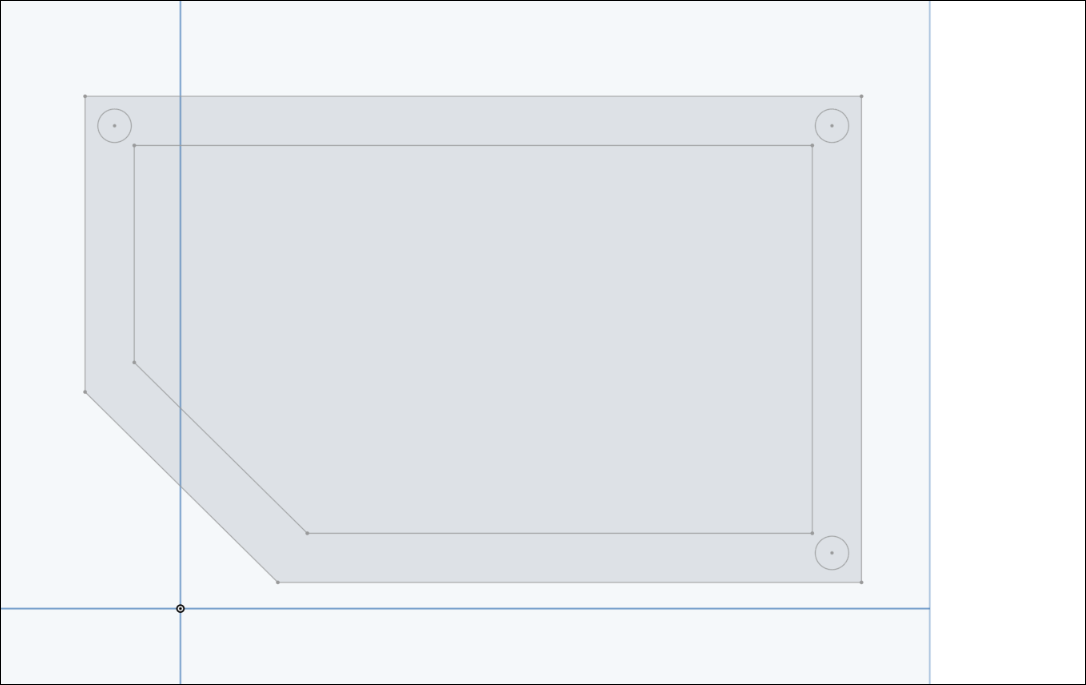

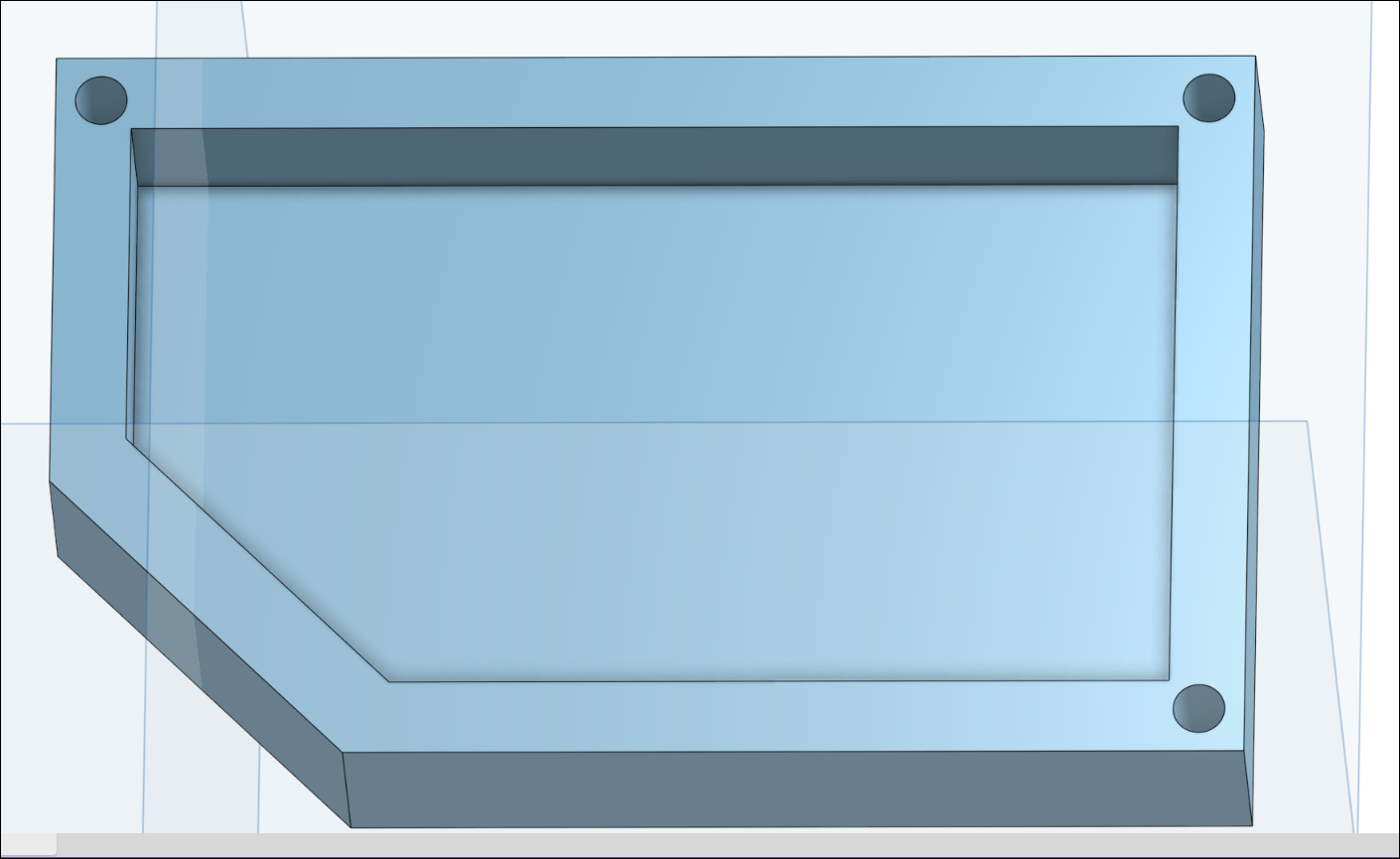

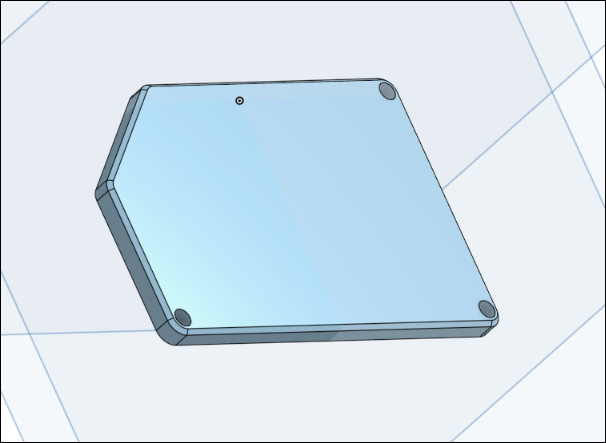

alr now im frustrated now im gonna take a break and you know what let me go and play some football with my buddies. see ya! Sup! I'm back!!!!!, Alr So im done with Sch and Pcb now I'm gonna start with my fav part the CAD ooo yeaa!! so, now im just gonna add the screenshots of the process but let me tell you guys what i did during the process first of all im using onshape cause i use Arch btw so yea First i'm gonna start with the bottom case and then the top and yea i fucked up during the process I fucked up in the measurements so yea, Then I fixed em' It was fun gng lmao, Nvm here are the screenshots. After all of the mess that i creaeted I fixed all the things and then I added some Text and then I added some shapes to it for the asthetics purpose. And Damn it looks really awesome.

Uhm I think I'm done with everything now all i need to do is setting up the repo and submitting and yea i live in india and now they have cutted electricity and I have only 20% in my lap , Nvm I can't do all the things now And yea I really grinded today so yea I'm gonna sleep now my prents are scolding me too. ^{_^}

Time Spent: 9hrs

31th July: Submitting and setting up the repo

Alr so it's like midnight But i think I will just do this then I will go to sleep. First I amde a folder which contained all the files and yea that's all I here by Anay signs out.

Time Spent: 2hrs
