Made by: @aryan Repository link: https://github.com/aryn-pathak/material-zero/

TOTAL TIME (source screentime): ~36 Hours (and 40 hours on old printer)

---

title: Material DELTA author: aryan pathak description: A Delta style printer, powered by USB-C

created_at: 2025-06-02

Massive thanks to Hack Club and Alex for giving me this insane opportunity to build my own 3D printer!

This is Material DELTA, An open source, superfast, super cheap, (most importantly) USBC powered, Delta-style 3D printer.

DAY ONE

My old printer wasn't for a long time since i submitted it on 7th of april, but that gave me time to realise that it wasn't good. It was unnecesarily expensive, structure was unstable and probably slow, the printer was very average and didn't have any big innovative feature (just hands free printing powered by an RPi and a web server) Post some research, I came across a much more uncommon kinematic of 3D printers-- Delta. One of the goals of my old printer (that I realised was beyond unrealistic), was powering it with USBC. A delta printer meant there would be so little load on each motor, current draw would be very minimal.

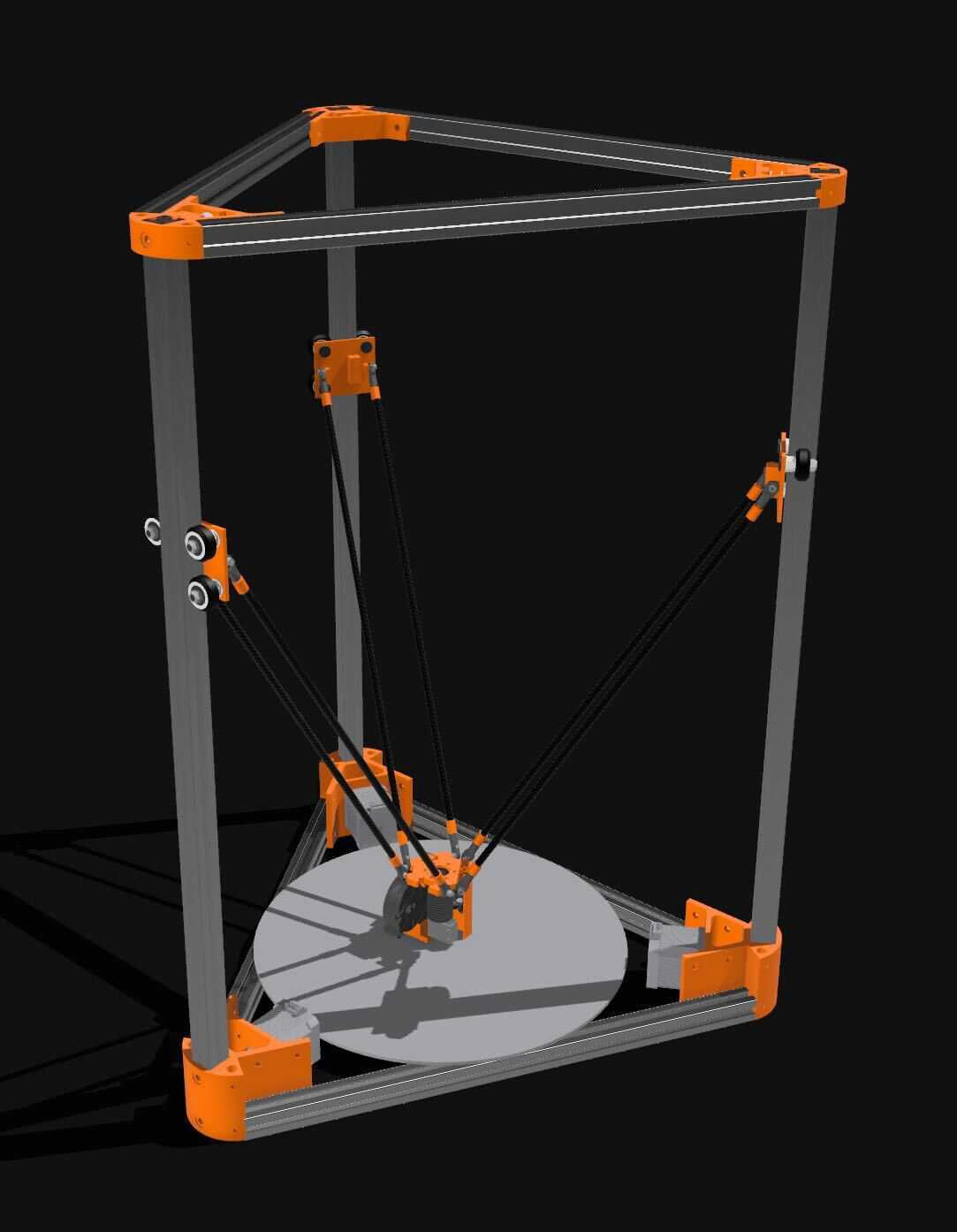

This is what my old printer design looked like:

A solid plan with me, I know I am 100% going to build this.

DAY TWO - FOUR

I started building the printer. Everything was going very very well. Costs were minimal. I found out that carbon fiber rods were used for the lightweight arms of the printer, but i got a bit carried away, and built the entire printer's frame out of carbon fiber :sob: I made the carriage too, which would have ball joints (3D printed, and a 8mm ball glued on)

CAD and research: ~6 hours

DAY FIVE-SIX

Wasted a ton of time on making the top and bottom holders (out of carbon fiber too), and with 3D printed holders (very very unstable and inconsistent). Making them took a LOT of time because i was trying to make an equilateral triangle and trying to adjust the rods and the holders and everything, which took 2 days sadly

Corner holders: these weren't practical or accurate at all, but this is what it looked like

CAD: ~4.5-5 hours

DAY SEVEN-EIGHT

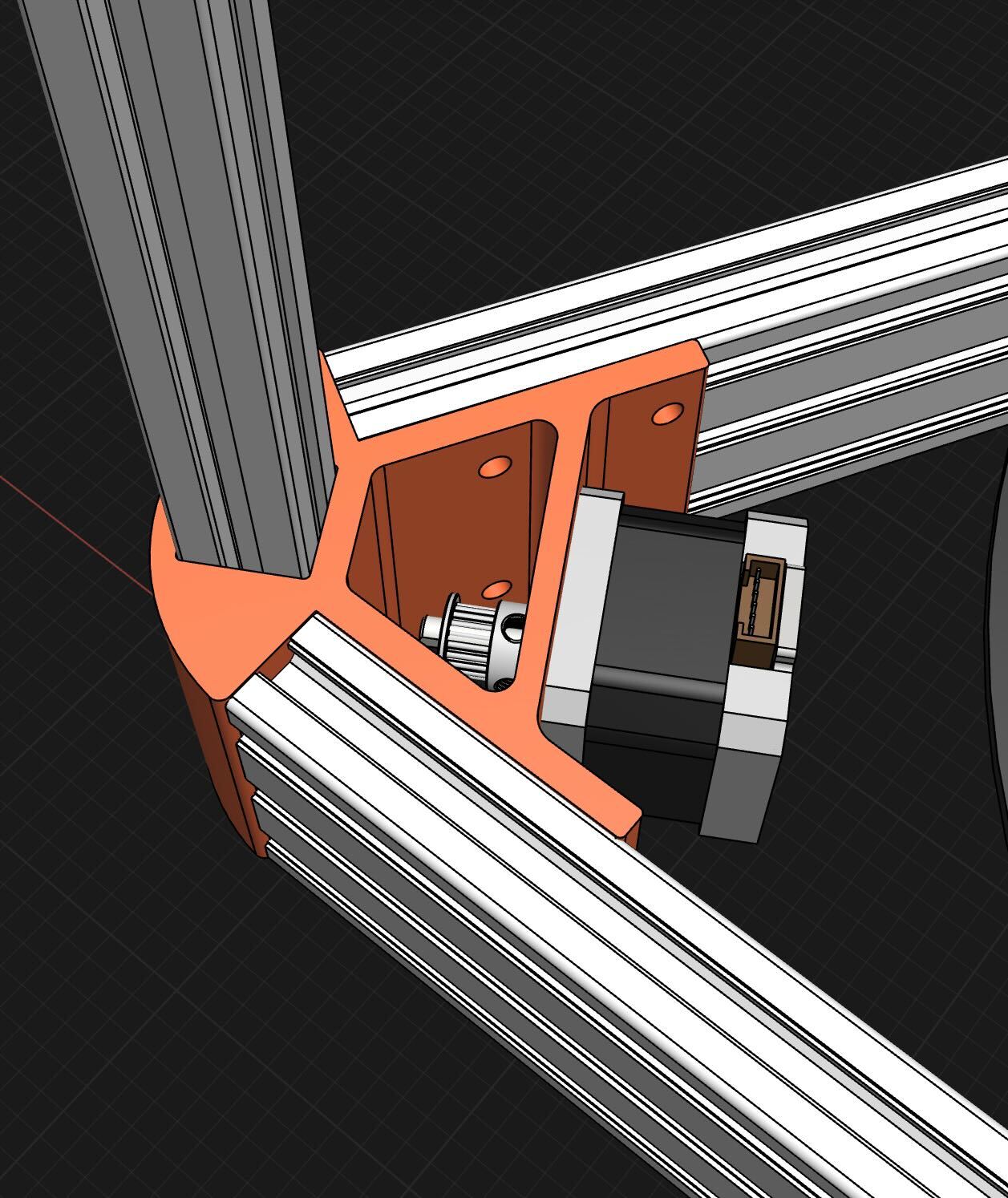

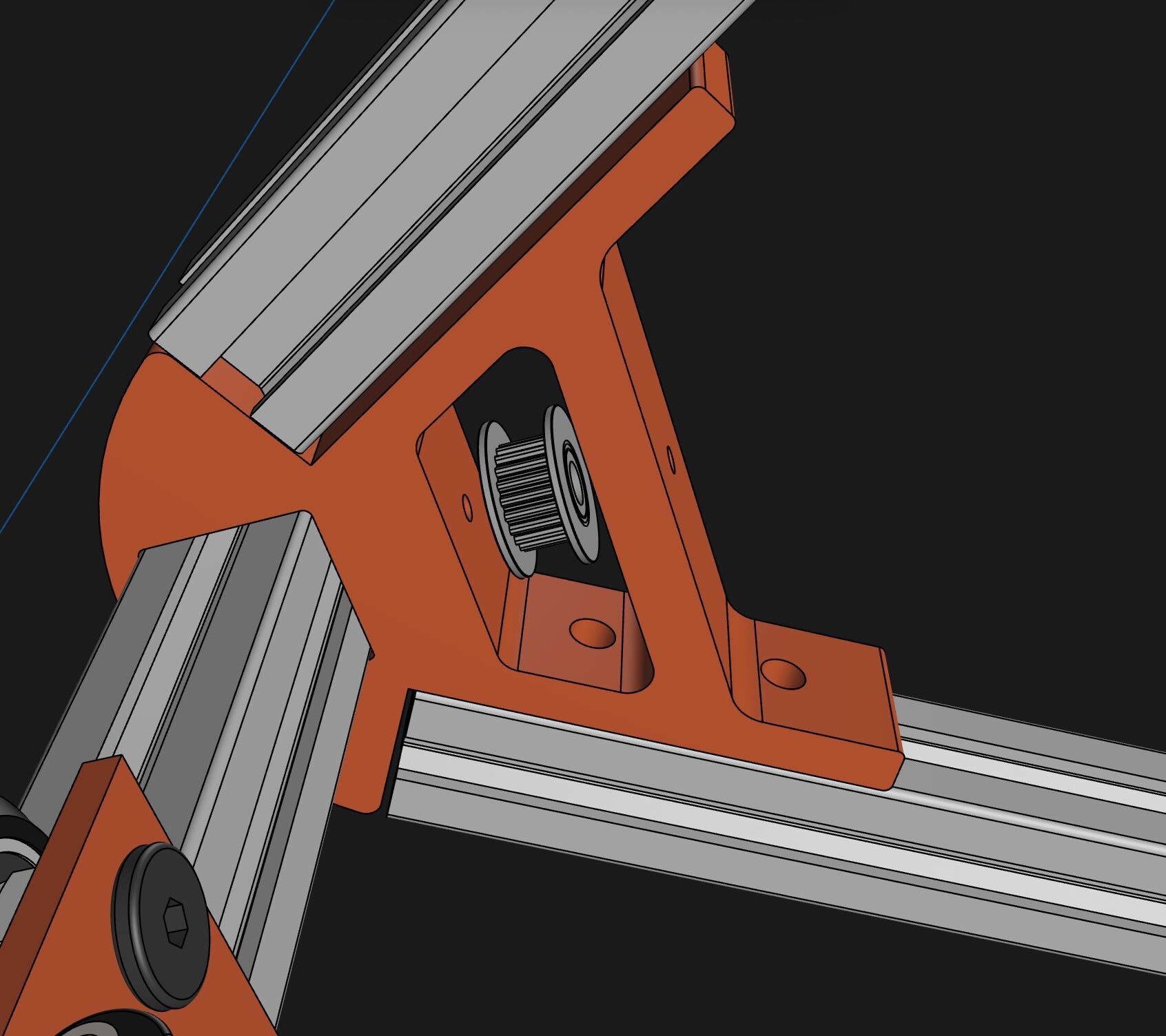

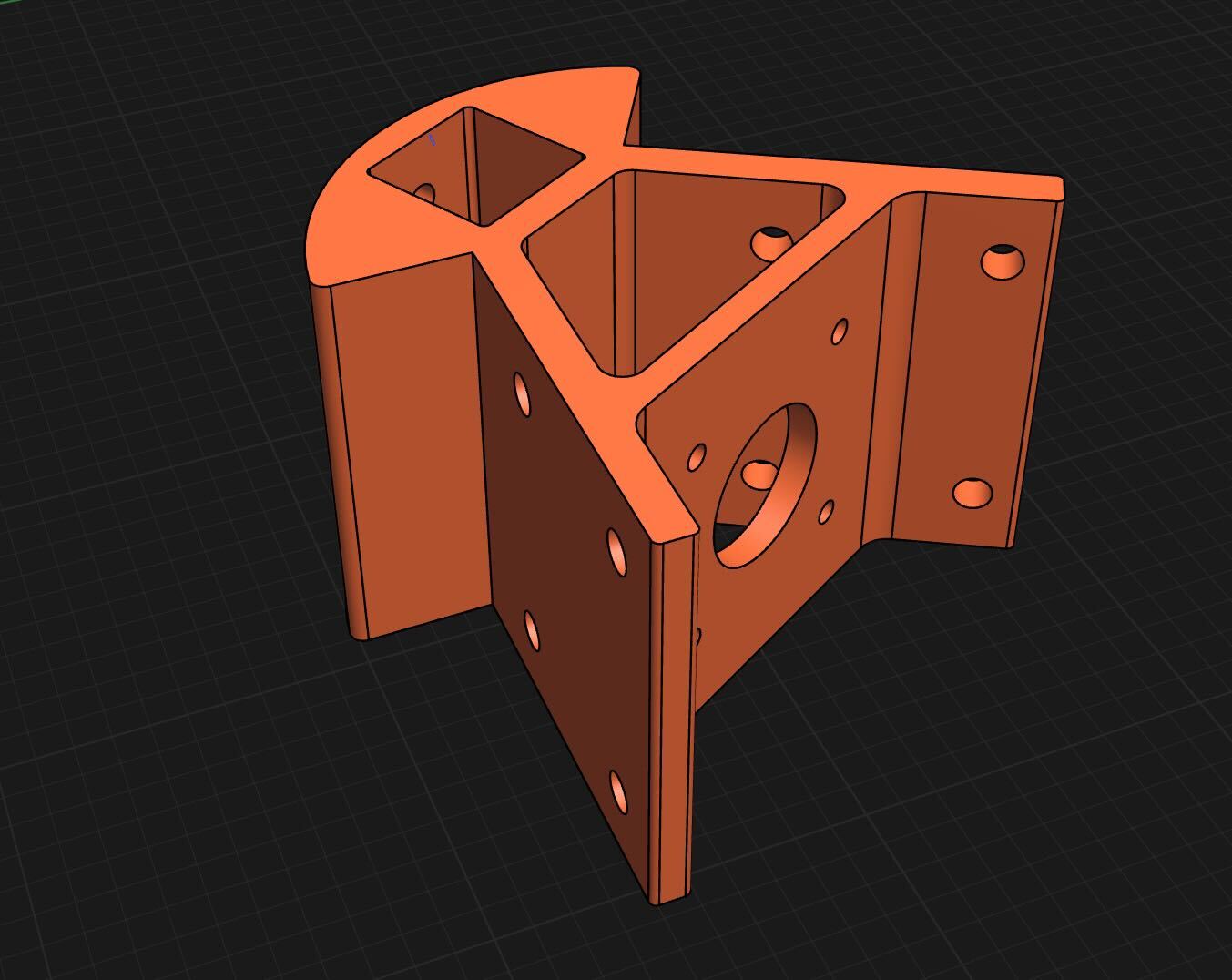

Did some chatGPT-ing for design ideas, and also realised carbon fiber rods were insanely impractical and unstable, so i decided to make the frame out of 2020 AND 2040 extrusions. Also found something called Kossel-style corners which are 3D printed holders for the frame

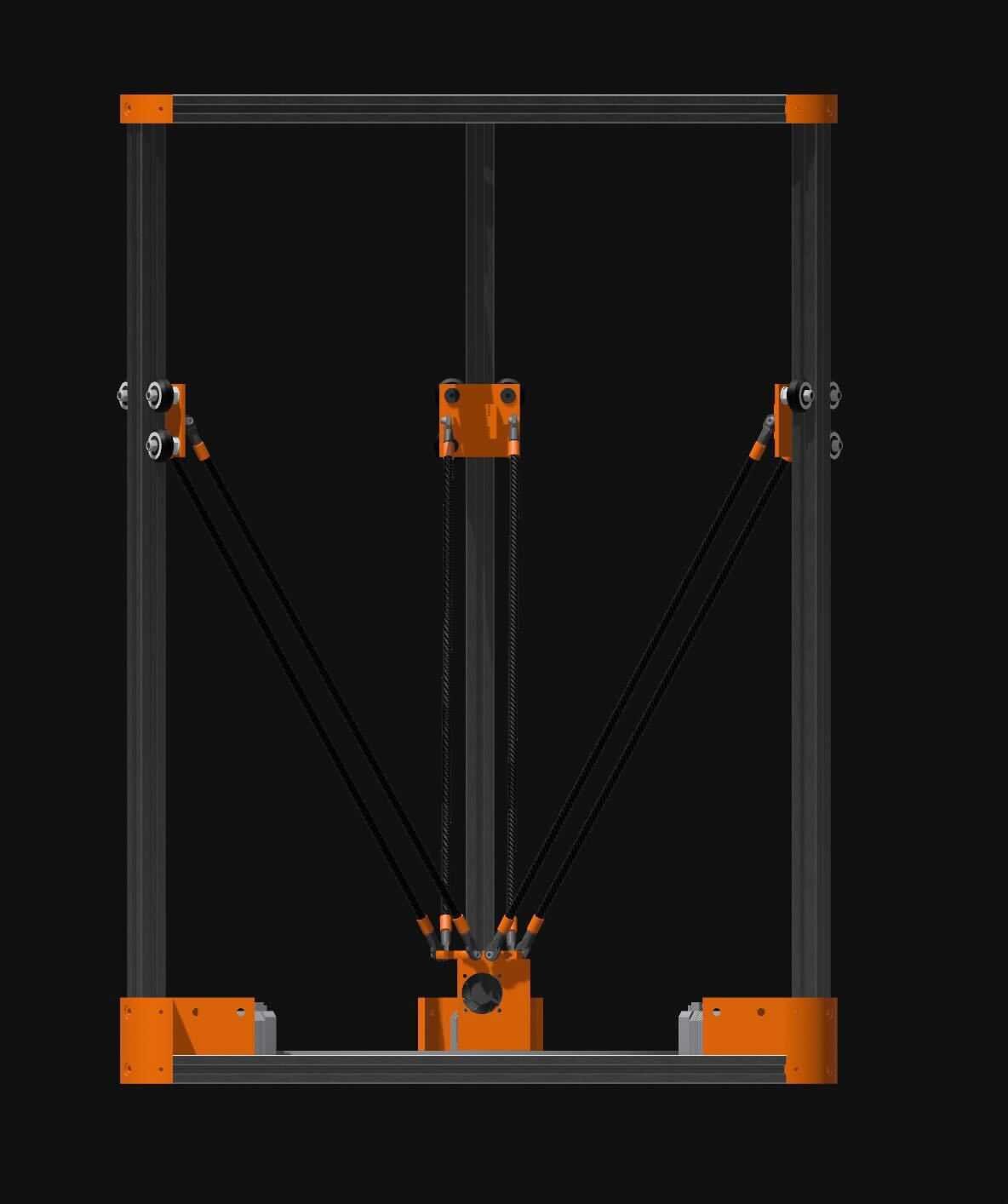

I also designed the carriage today:

CAD, bit of ChatGPT: ~4.5-5 hours

DAY NINE

EXTRUDER SHOPPING !! im using a bowden setup, and all hotends are either more expensive than my entire printer or slow and generic. My custom hotend assembly would be made of a V6 heatsink, 65W heat cartridge (not the best, ik, but it fits in my power budget of 100W for USBC), a volcano style heatblock, CHT 0.4mm nozzle, and a bimetal heatbreak.

Volcano heatblock (slightly different from V6, provides better heat retention (needed for low wattage heater):

CHT nozzle with 3 holes for better melting efficiency:

Shopping and research: ~2.5-3 hours

DAY TEN

Curated the BOM, currently, the printer costs about 100USD (1/3rd of the max budget). (remind me to keep making the BOM alongside the printer design process :sob:). Also, i've decided that for the printer, I won't be using a motherboard, but use an RPi Zero (which i have at home) giving it wireless capabilities, running Klipper. But a bit of research revealed that it's GPIO isn't fast enough, and thankfully I also had an orph Pico from highseas lying around, which is much more suitable for swiftly controlling motors.

MORE RESEARCH: ~2 hours

DAY ELEVEN-FOURTEEN

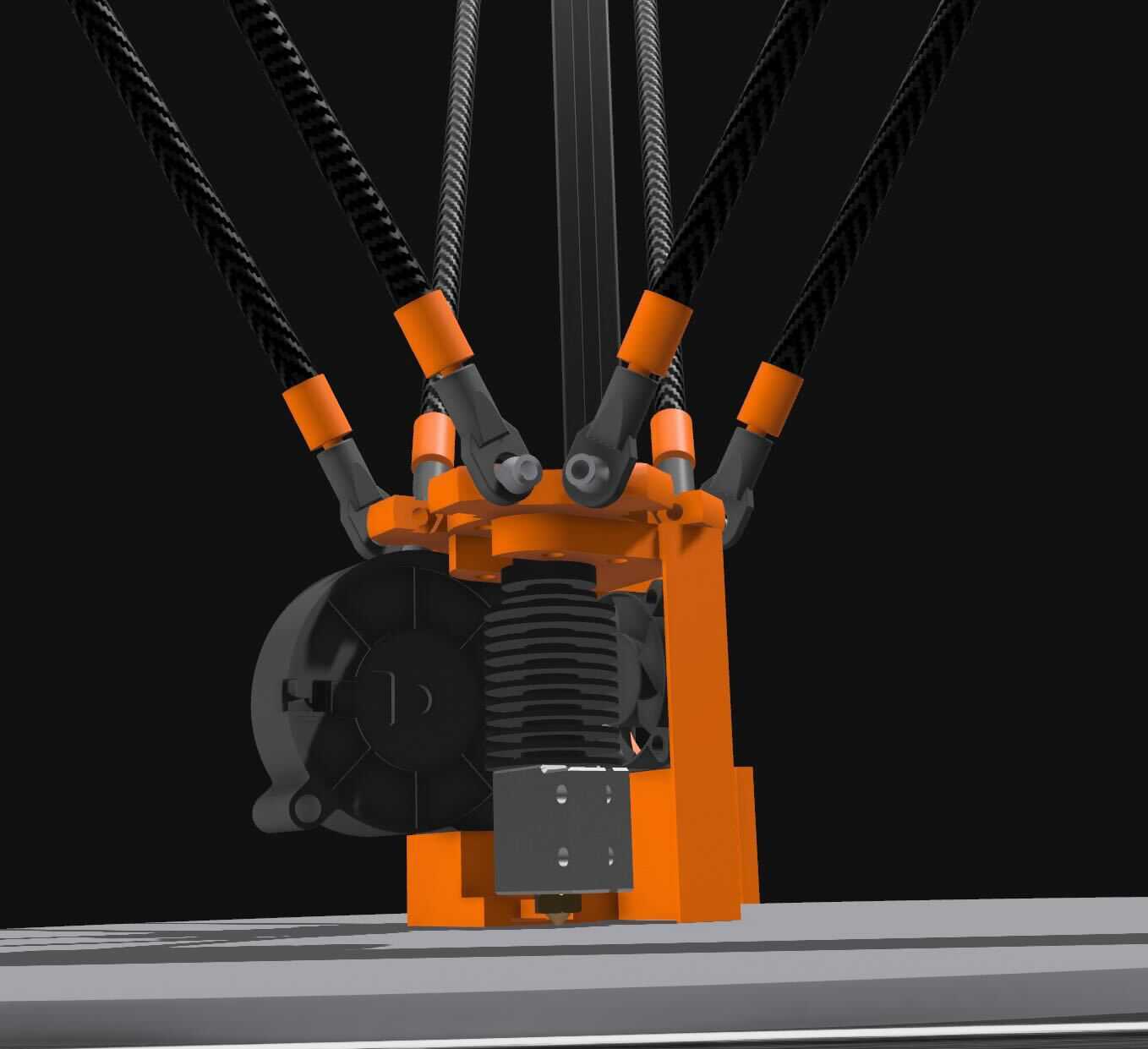

Wasted a ton of time again, this time for designing the effector (the hotend carrier). I had to design a duct for the 5015 blower too, and made 3-4 iterations of it, but finally settled on a super simple duct and overall design, and also looks great. I even found a set of 12 threaded balls and sockets (called 5347 rod ends), which was really helpful since the 3D printed ones wouldnt give a lot of freedom of movement.

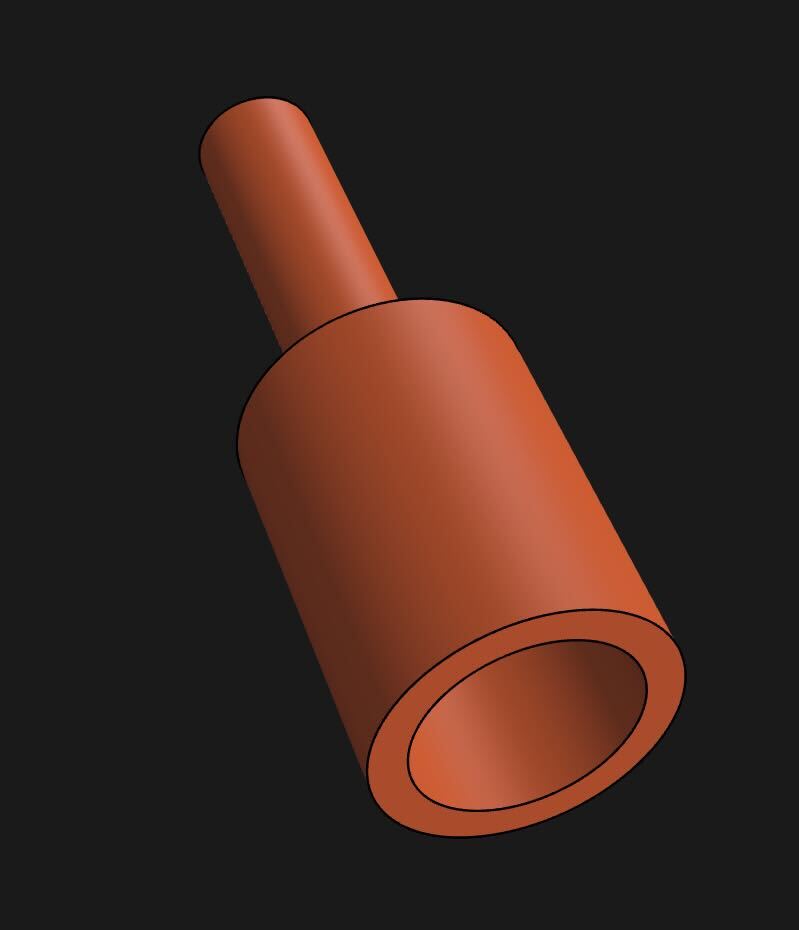

I also found out that these are for 3mm rods, so i had to design an adapter for my 6mm rods:

mostly CAD: ~9.5-10 hours

DAY FIFTEEN

I'll try to submit the printer finally today, so the documentation, logs, final BOM, including the most important parts-- USBC PD negotiation board and all the small parts needed to make it work, like buck converters, boosters, etc. finishing touches-- I'll get all that done today and submit it :D

This is a USB-C-PD Decoy board, which negotiates PD (upto 100W) with the power source.

DAY SIXTEEN-SEVENTEEN

Worked on BOM, finishing touches here and there, and finally submitting it after 40+36 hours 😭

finishing touches, research, shopping: ~2.5-3 hours

here are some images for you :)

BOM:

Category	Name	Link	Price (INR)	Price (USD)
CONTROLLER PARTS	NCE4080K	Link	108	1.296
	PDC004-PD	Link	109	1.308
	SMBJ6.0A	Link	20	0.24
	100uF 25V Electrolytic Capacitor	Link	6	0.072
	1N5819	Link	61	0.732
	Connector (x2)	Link	391	4.692
	Orpheus Pico	available @ home	0	0
	RPi Zero 2W	available @ home	0	0
	TMC2226 Stepper driver (x4)	Link	1796	21.552
	XL4015 Step down	Link	75	0.9
	XL6019E1 Step up	Link	155	1.86
PRINTER PARTS	Nema 17 (x4)	Link	2316	27.792
	Volcano heatblock	Link	149	1.788
	Heater	Link	99	1.188
	Heatbreak	Link	169	2.028
	CHT Nozzle (0.6mm)	Link	129	1.548
	Heatsink	Link	79	0.948
	3010 Fan	Link	71	0.852
	Pneumatic connector	Link	20	0.24
	Tube (x2)	Link	218	2.616
	2020 extrusions (5m)	Link	1895	22.74
	Titan extruder	Link	399	4.788
	Ball joints for arms	Link	400	4.8
	Carbon fiber arms (x2)	Link	642	7.51
	GT2 timing pulley (x3)	Link	75	0.9
	Idler pulley	Link	65	0.78
	GT2 timing belt	Link	120	1.44
	V Slot wheels (x9)	Link	1071	12.852
	2040 extrusion (3m)	Link	2646	31.752
	5010 blower	Link	75	0.9
	Thermistor	Link	99	1.188
	1kg PLA	Link	799	9.588
	10mm Spiral Wrapping	Link	90	1.08
	Round bed sticker	Link	274	3.288
	PVC tape	Link	167	2.004
	Endstop switches (x6)	Link	240	2.88
FASTENERS	M3 x 12mm	Link	26	0.312
	M3 x 25mm (x2)	Link	60	0.72
	M5 x 10mm (x5)	Link	140	1.68
	M3 Hex Nut	Link	18	0.216
	M5 hammernut (x50)	Link	300	3.6
	M2.5 x 8mm	Link	48	0.576
TOTAL			₹15500	$186

NOTE: Aluminium print bed is fixed to extrusions using screws. Will be sut and drilled at a local shop

EDITS AFTER SUBMISSION

• Made new duct, with clearance and pointing right below the nozzle (instead of on it)

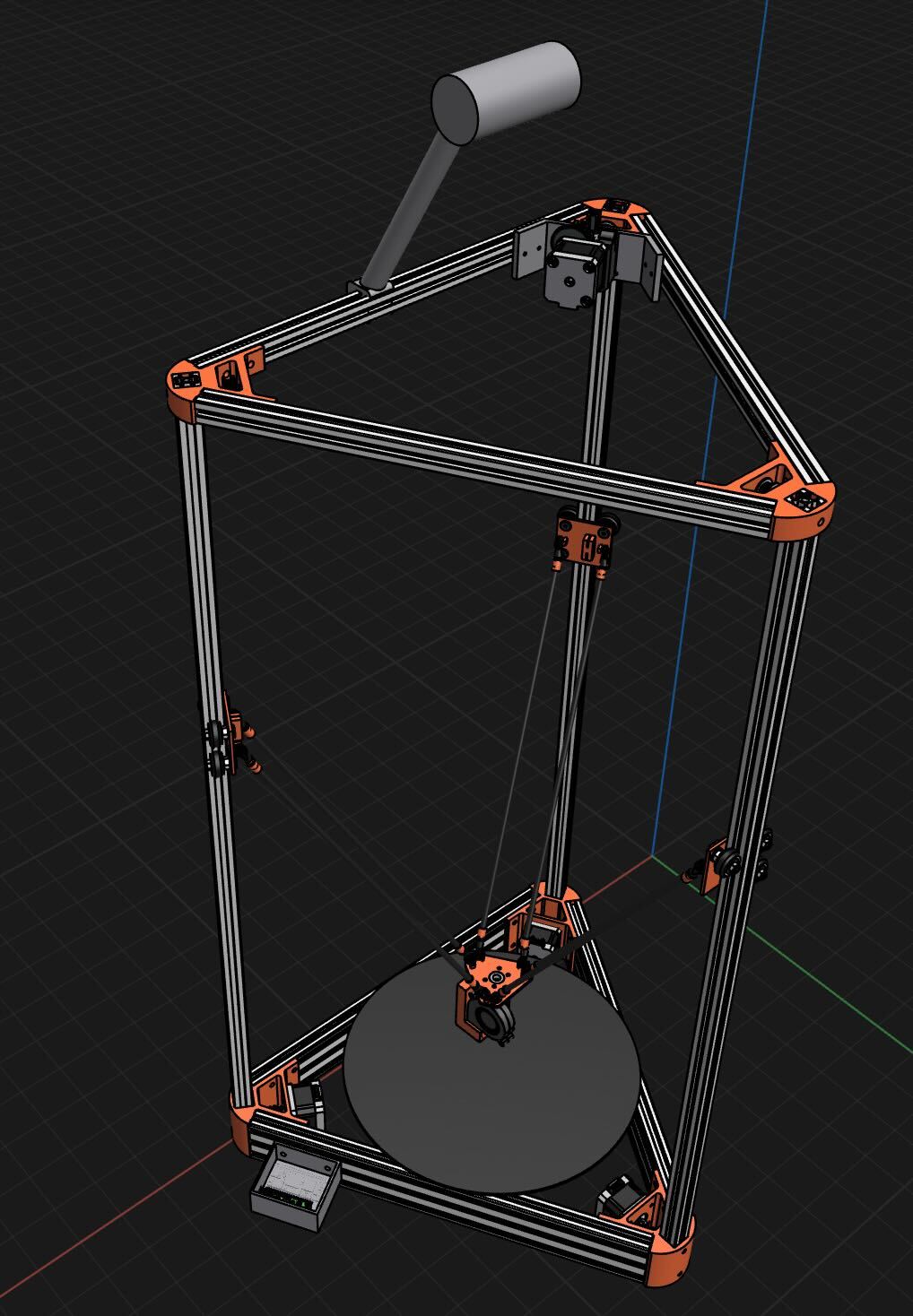

• Made it taller for more Z axis
• Added bowden mount for extruder
• Added filament holder

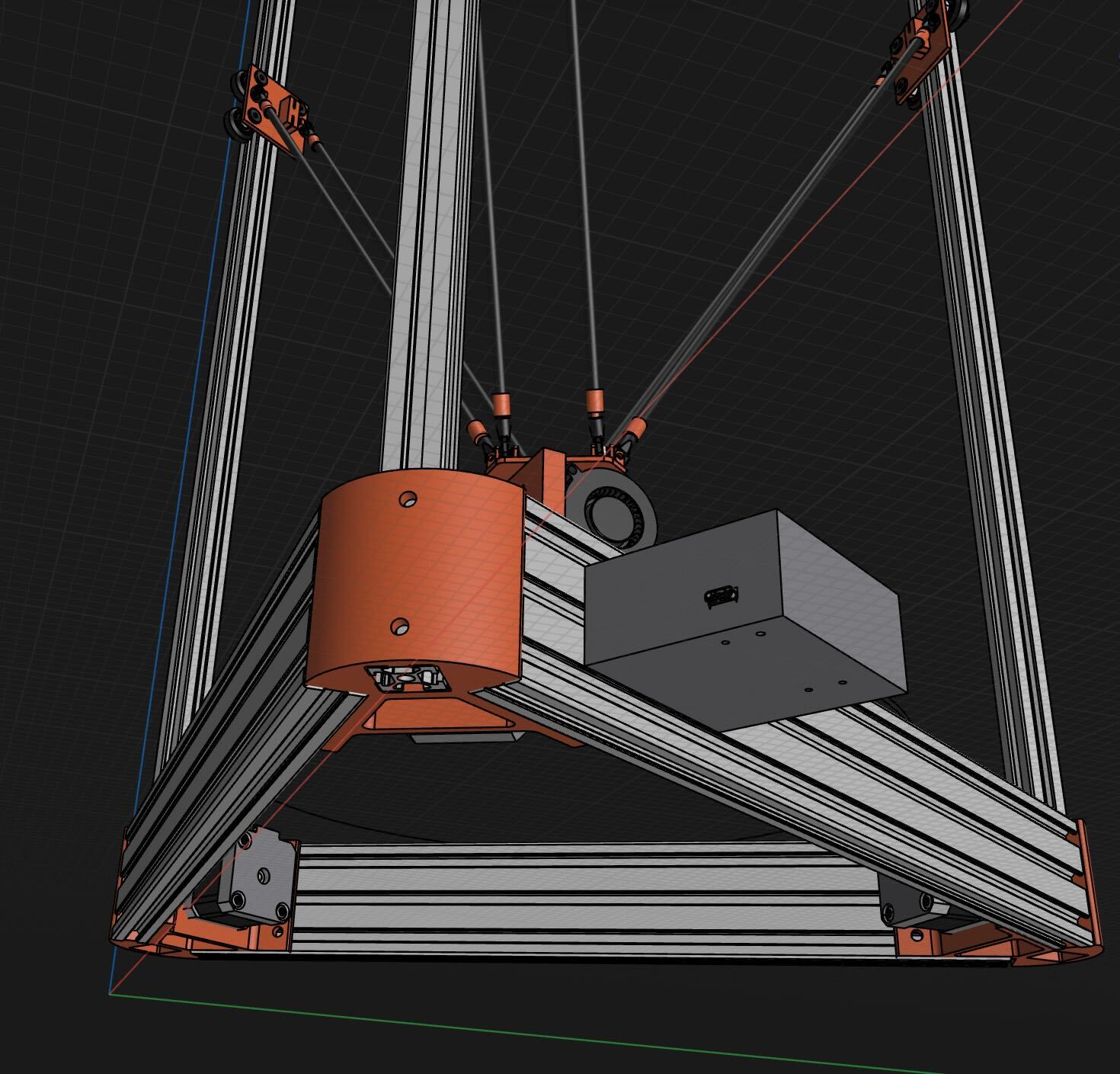

• Modelled in the boards
