📔 BEAN-CAKE Project Journal !!!!!!!!!!!!!!

TITLE: BEAN-CAKE

AUTHOR: PRISCA CHIEN & BERNICE QIU (U0741Q95Y02 / U0741Q95Y02)

DESCRIPTION: CAKE INSPRIED SPY BOT

CREATE DATE: May 17

Prisca: 18.5 hours

Bernice: 20.5 hours

Updated until: June 9, 2025

Prisca: 3.5 hr
Bernice: 3 hr

Created a rough draft layout of hardware placement *did it on paper so, ill be uploading a pic laeter...(still cant find it....oops 👉👈)

Prisca: 2 hr
Bernice: 2 hr

Researched how to stream ESP32-CAM footage to an external display (TFT) *we didnt really have pics on that

Bernice: 1.5 hr

Write up sample code for video streaming and motor control *with the wiring we had on May18, we tried to write same sample on simulators but the simulators did not have the component we need. And did also does not support wifi.
Finalized list of hardware and component *we both found out that some of the component we wanted to use does not work well with the esp32-s3 and we needed to swap them out and find replacement.

Prisca: 2 hr
Bernice: 3 hr

Wrote working code for both the bot (ESP32-S3 CAM) and controller (ESP32 + joystick + TFT) *according the online sample code and reference, we tried to write code the bot and remote again. Hope it works when we have the part.

Prisca: 3 hr
Bernice: 3 hr

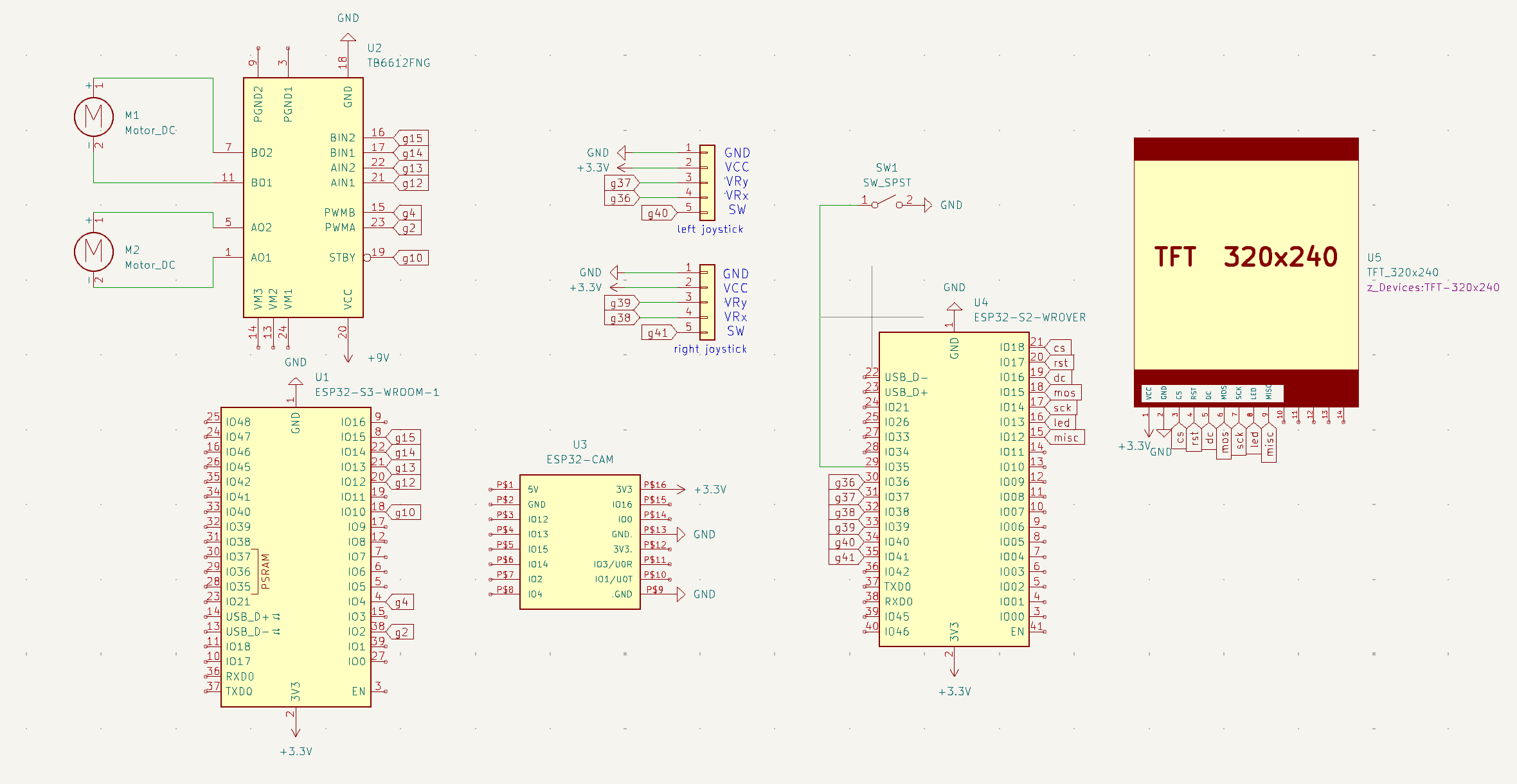

Completing the schematics of both the remote and robot
Realize that the power source that we were using could cause safty issue so we re did a lot of sourse listing because switch of power sourses.
Because the first version did not consider the toggle switch and also forgot the switch button on the joystick
Updating the BOM

Prisca: 4 hr

Bernice: 4 hr

Bean Cake
