Total Spent: 5 hours 20 minutes

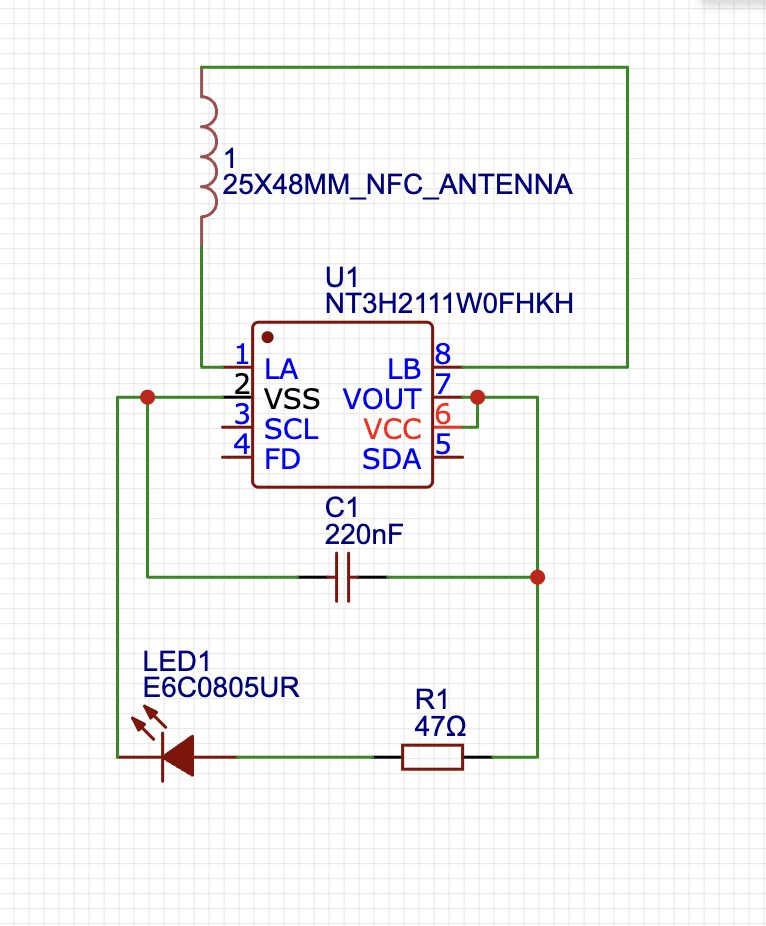

June 30th: Started the schematic

I am following this tutorial from https://jams.hackclub.com/jam/hacker-card, The tutorial uses EasyEDA on the web which is new for me so I spent a little bit of extra time navigating through the platform. After watching the tutorial and going through the figma slides, referring to the datasheets provided I got the schematic done

Total time spent: 2h

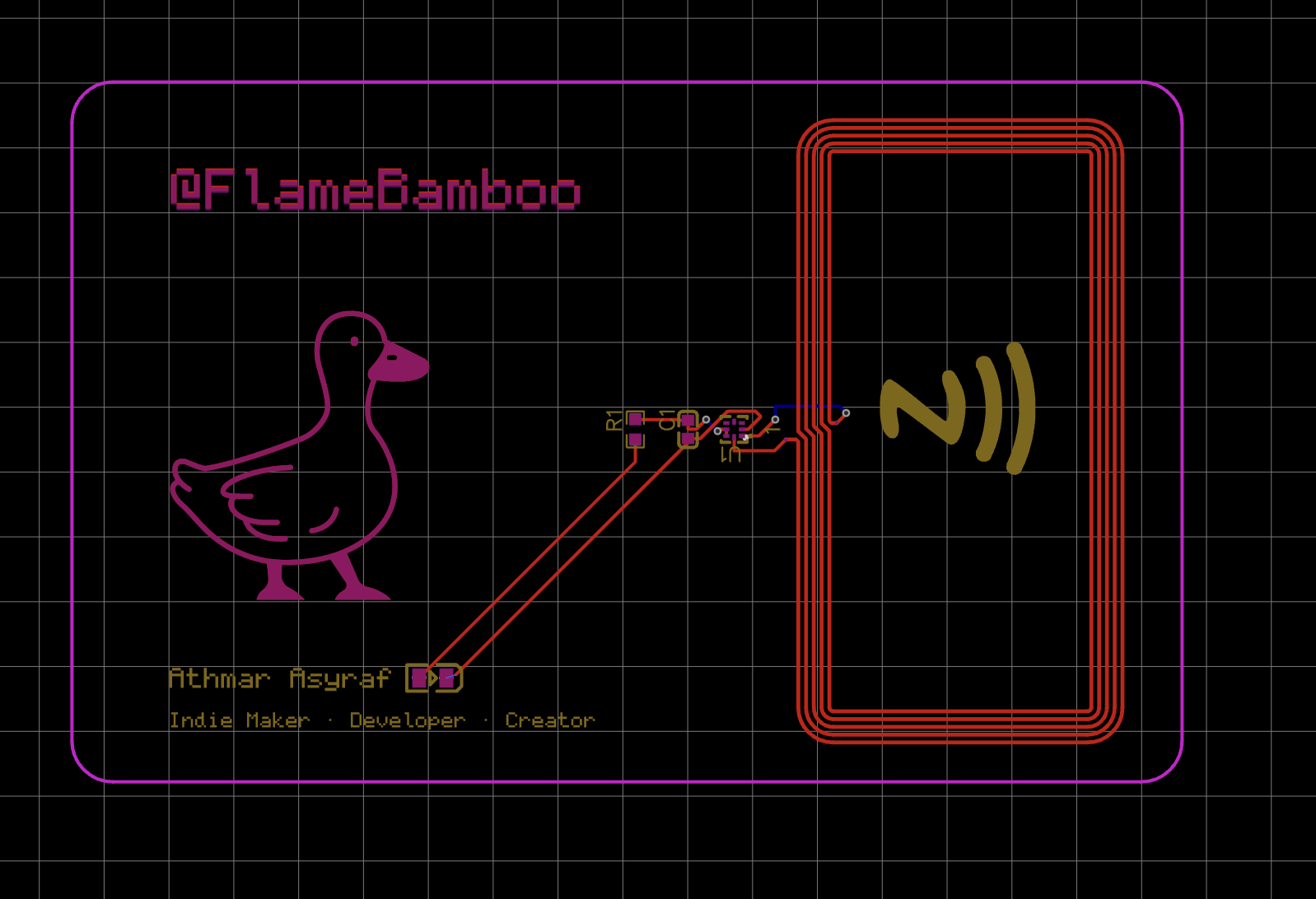

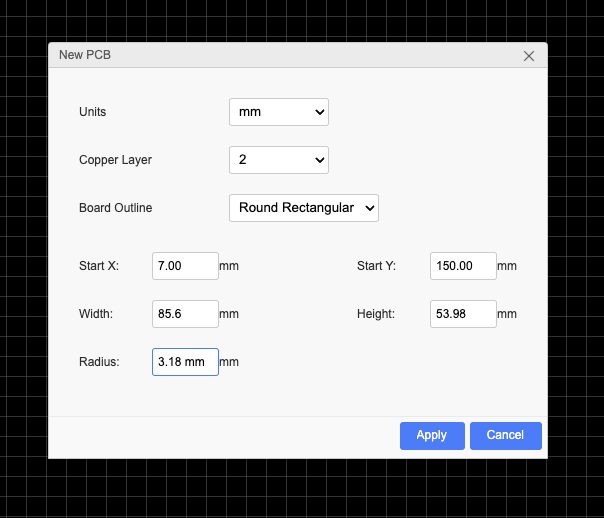

June 31th: Transforming to PCB

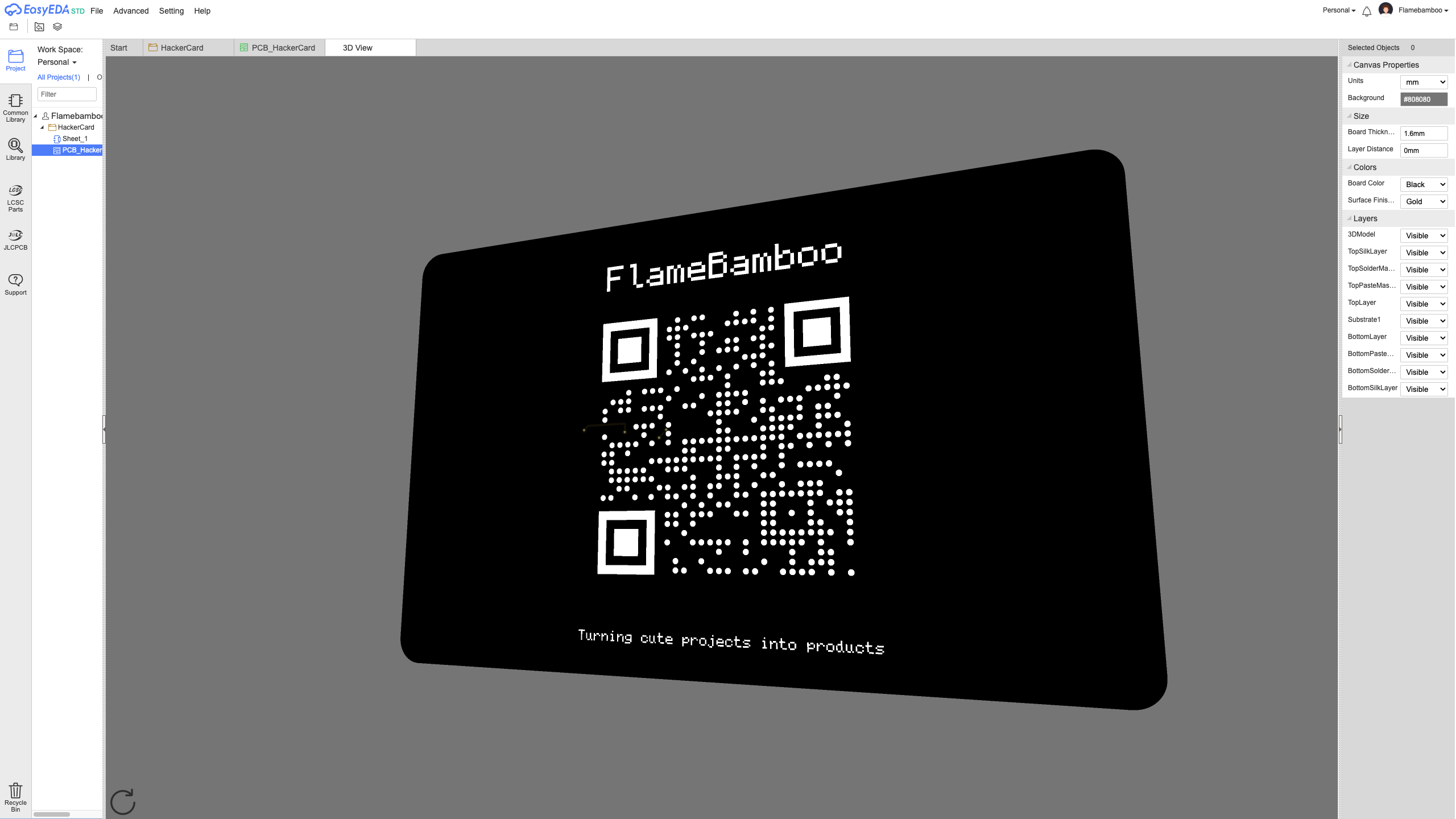

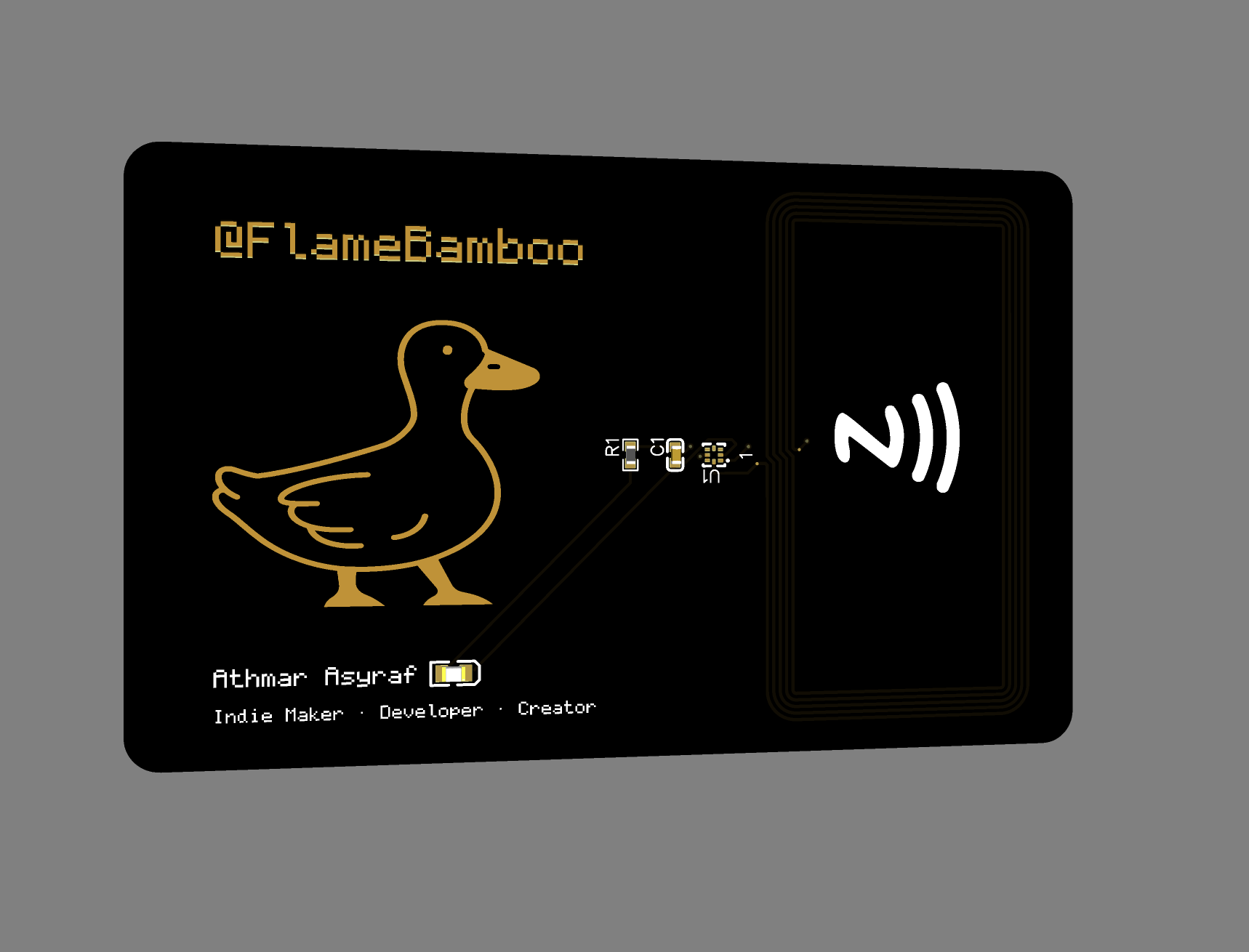

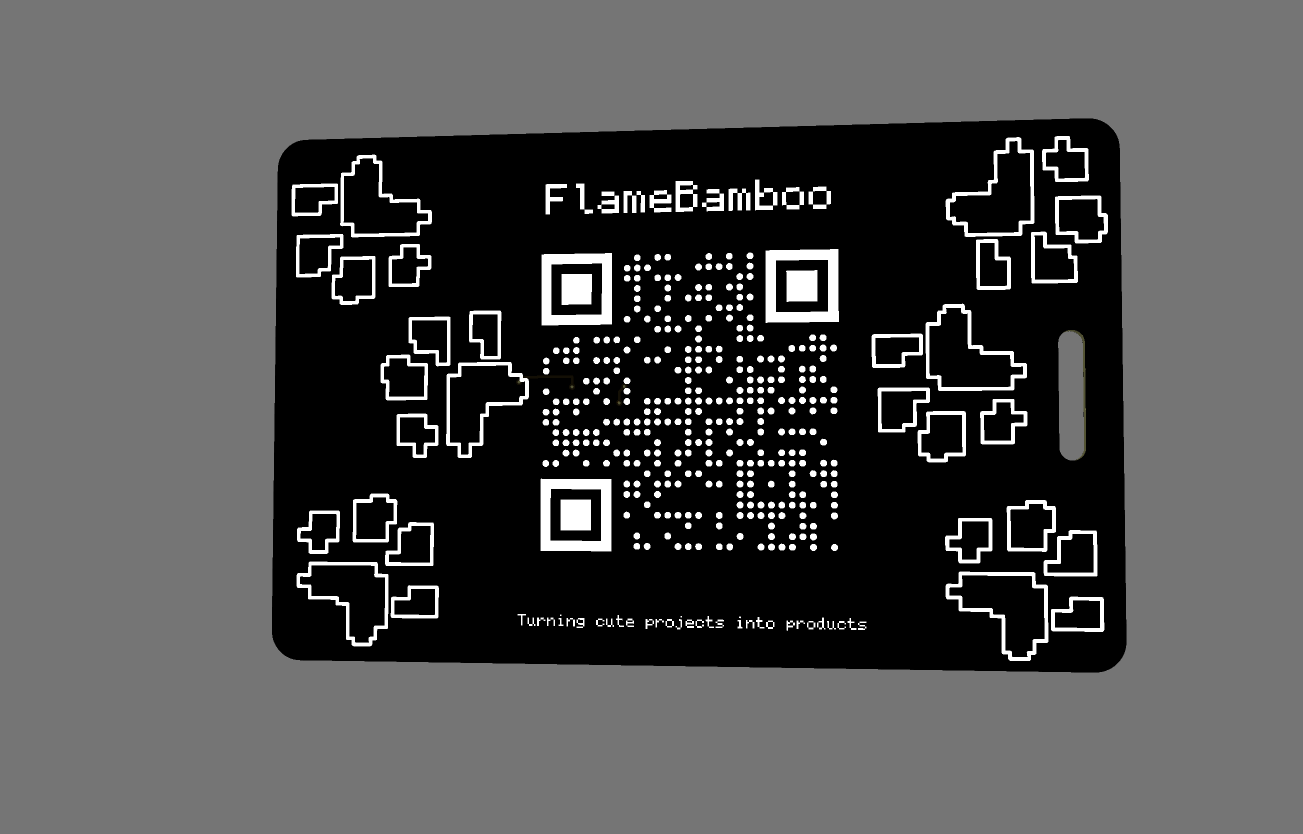

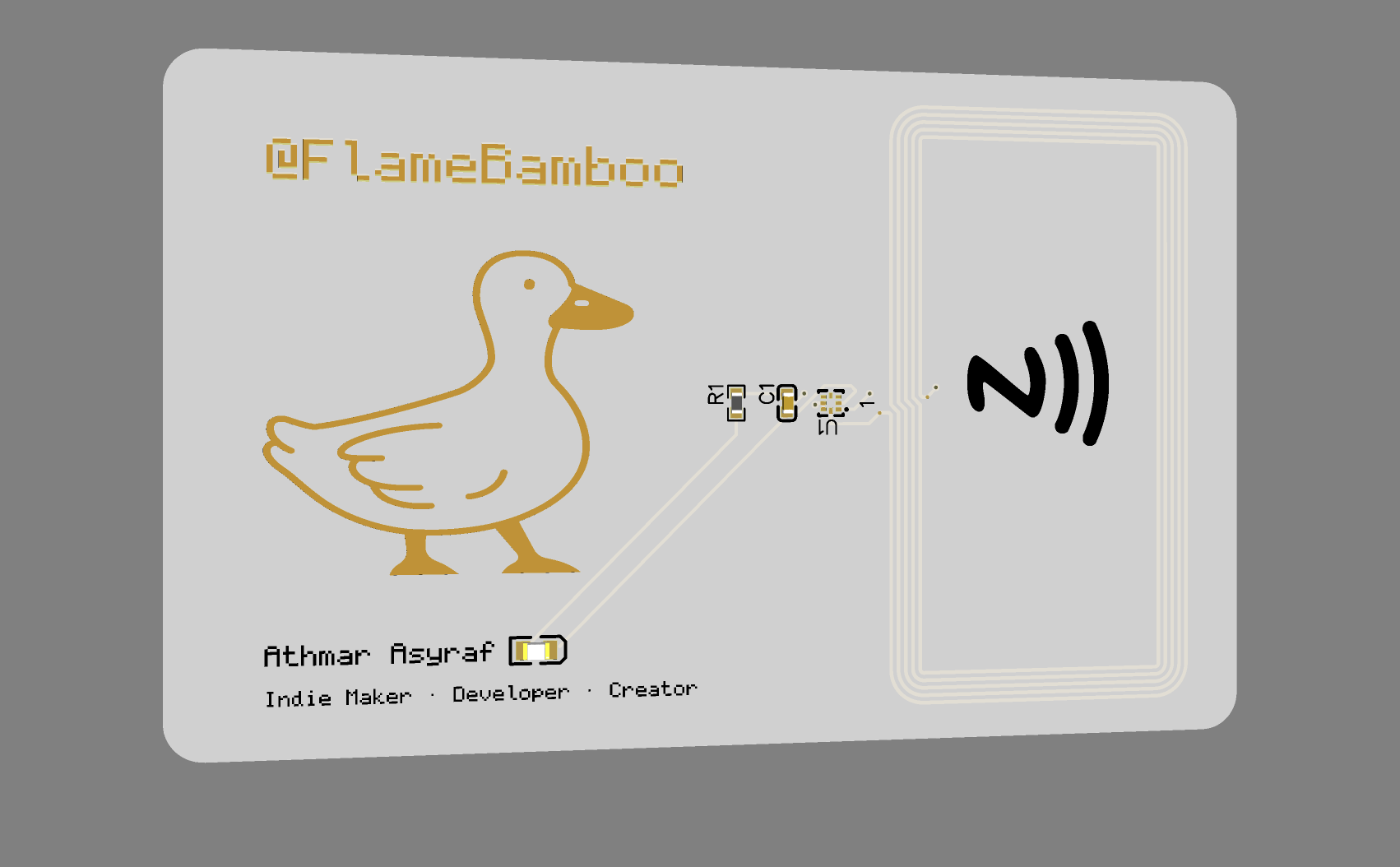

I positioned the components to be aligned nicely, then I routed the components together making sure there's no short circuit or have any traces overlaps as mentioned in the tutorial. Next I added my information for the content of the card aswell as adding personalised silkscreen like the duck! At the back I added a QRcode to my personal portfolio

Total time spent: 3h

August 1 (Still 31st in EST)

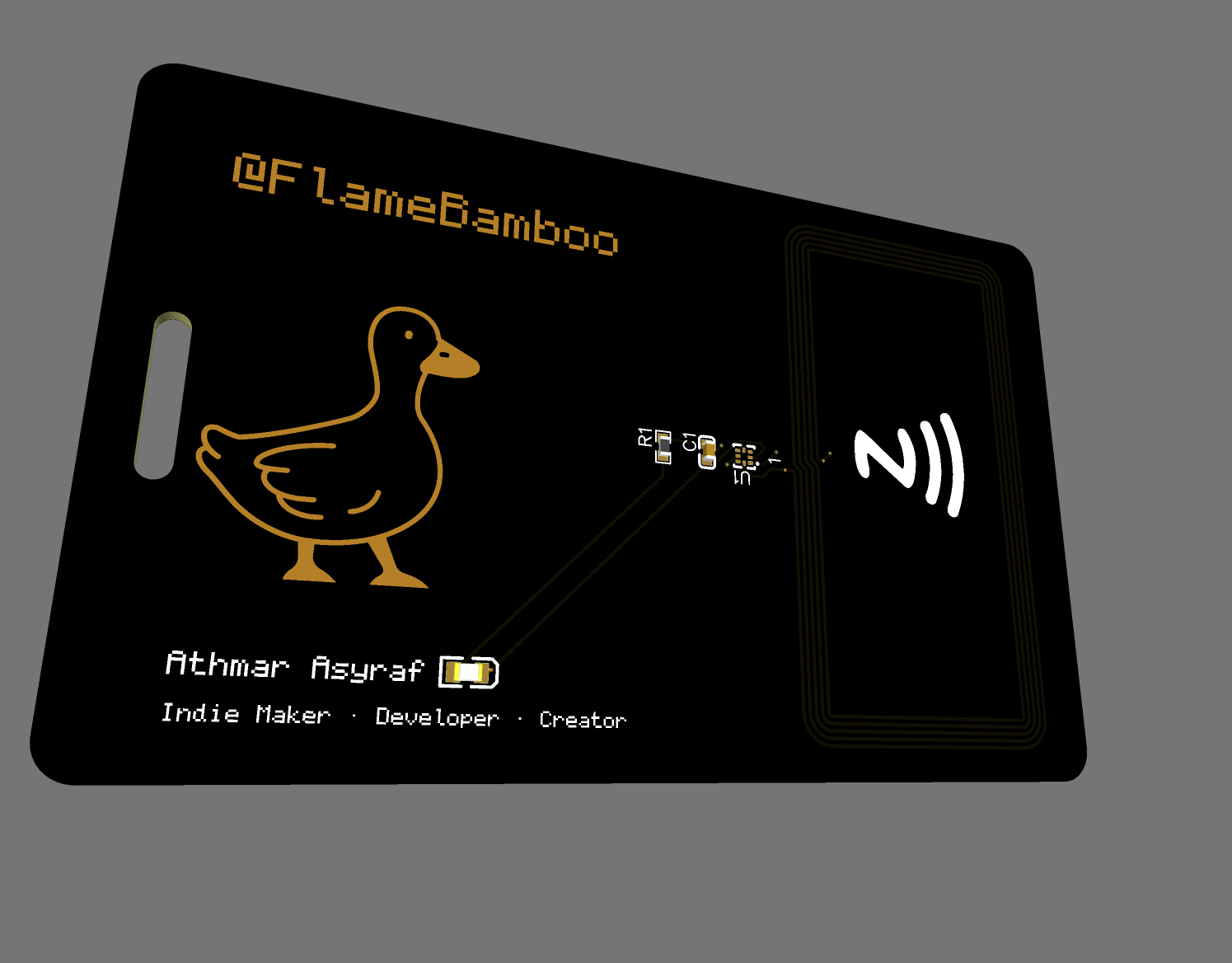

I added keychain hole about 12.7mm in height and 2.54mm in width with sound rounded curve that looks like this

Now it is time to replace all the gerbers files again!

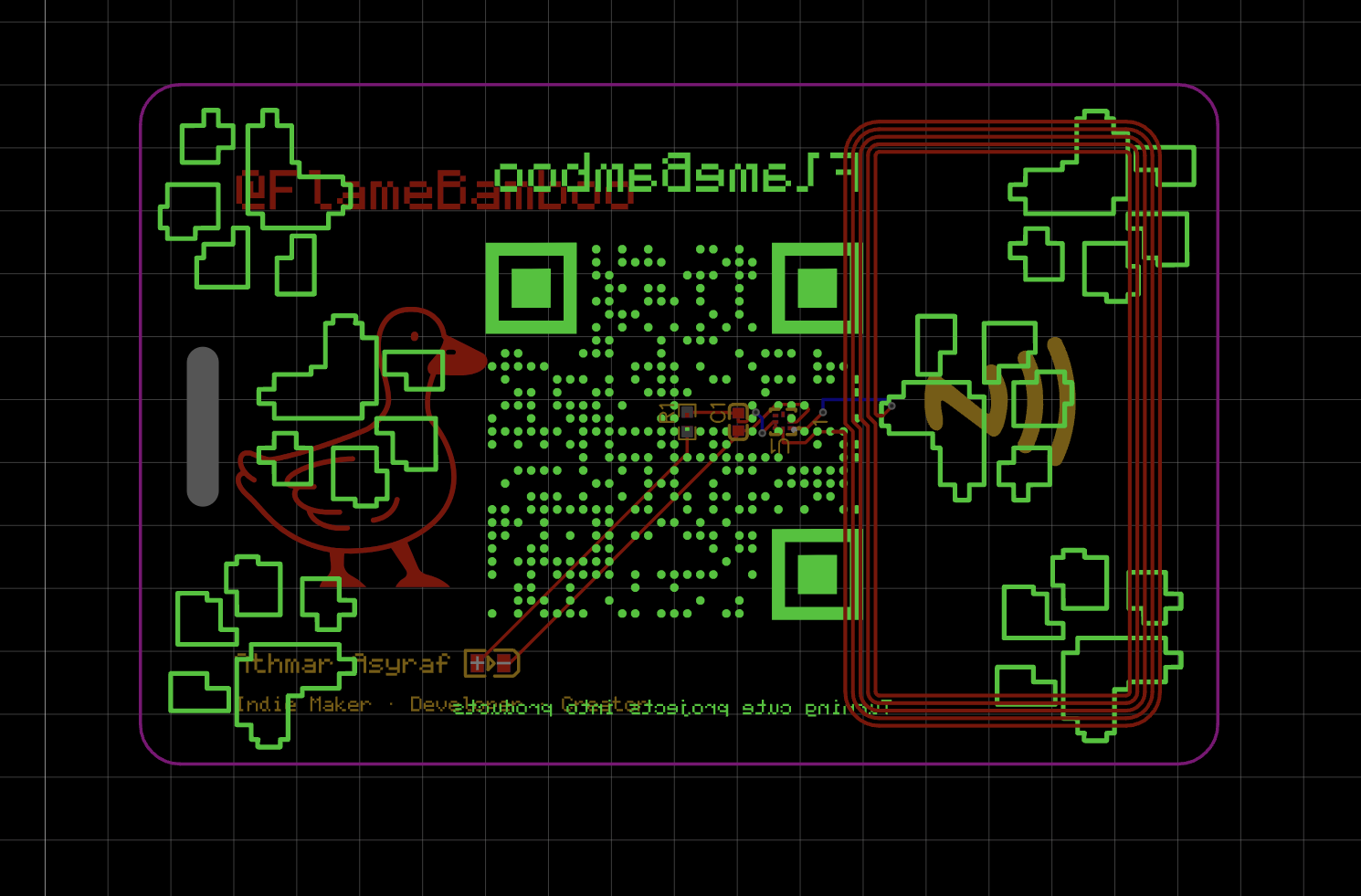

Reviewers told me to add additional artwork so I quickly opened figma and started drawing panda's paw

Total time spent: 45m

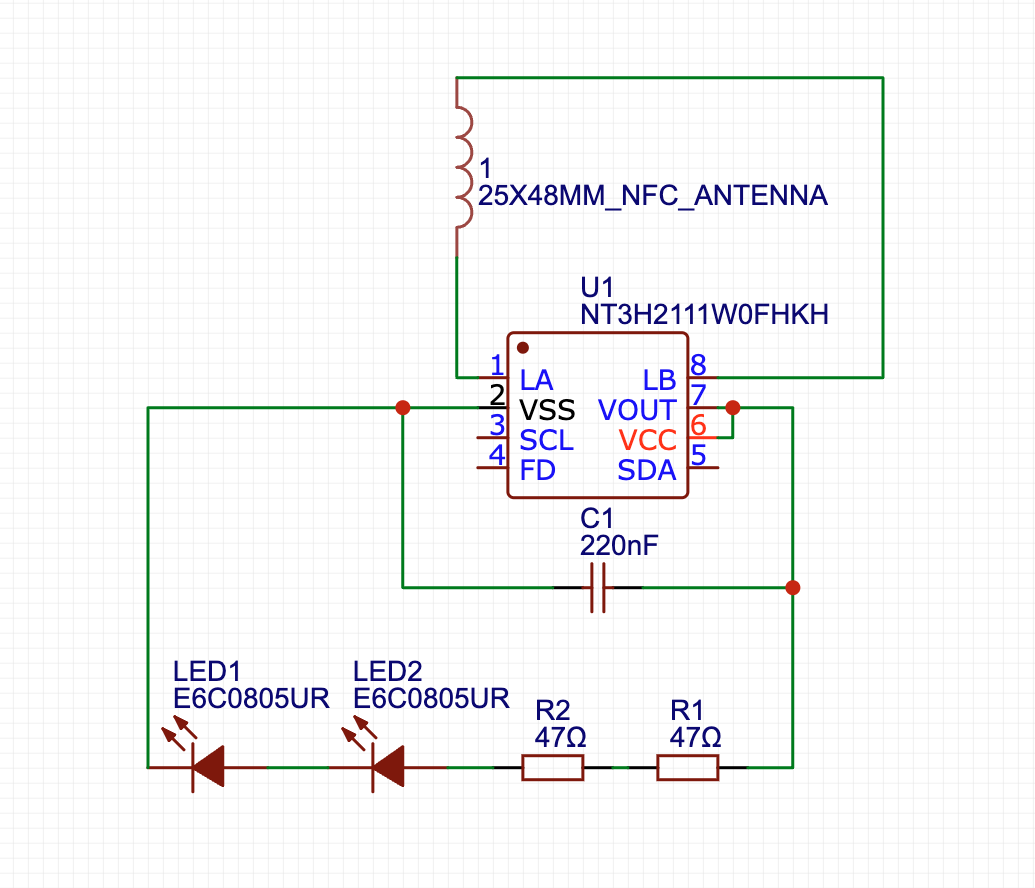

August 4 Re-Review FIX

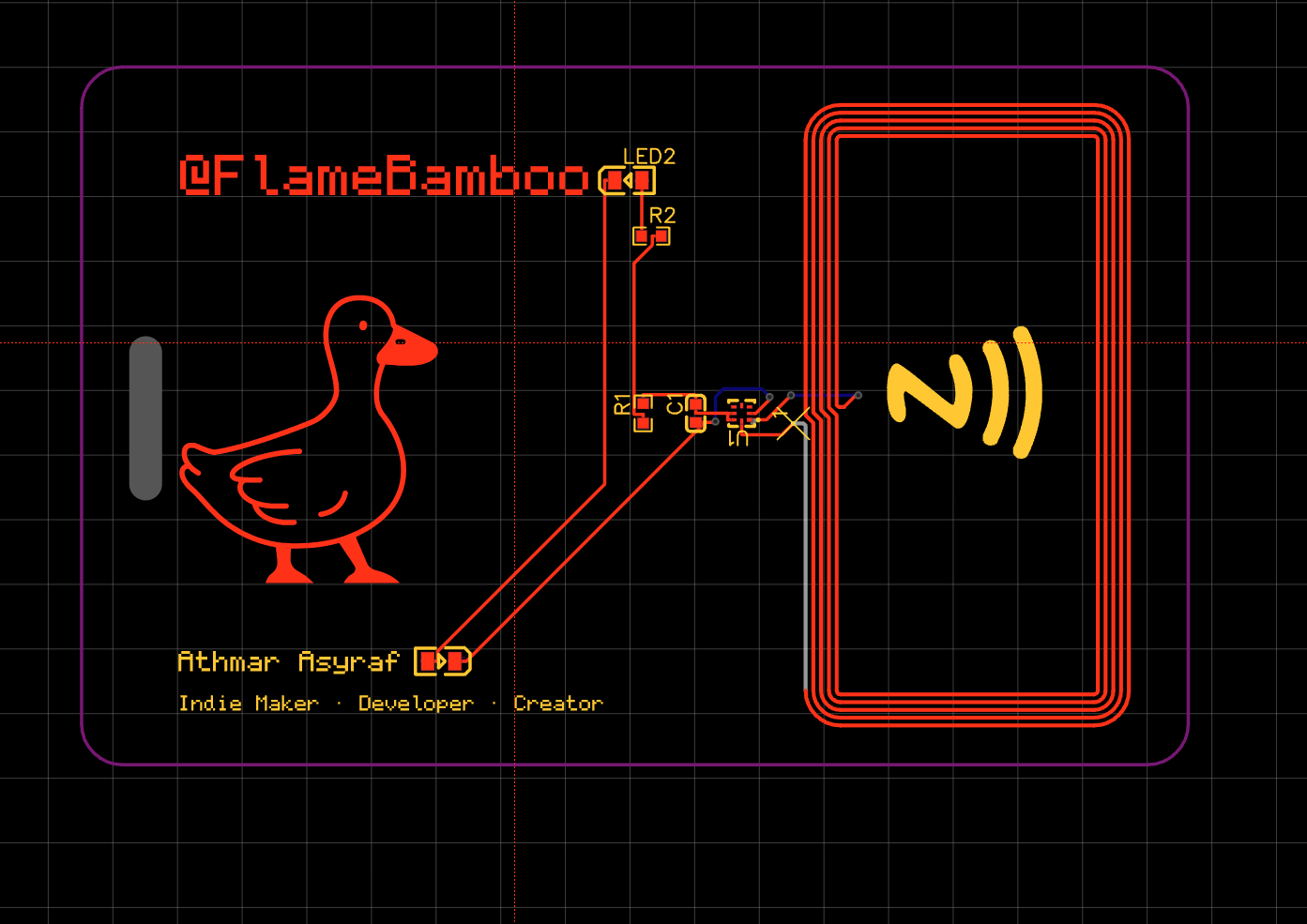

I had to add another LED to pass the review. just added LED and resistor.

Total time spent: 20m
