PCB Drone Project Journal

Author: Hassan Mohamed Project Start Date: May 29, 2025
Total Time Spent: 8 hours

May 29, 2025

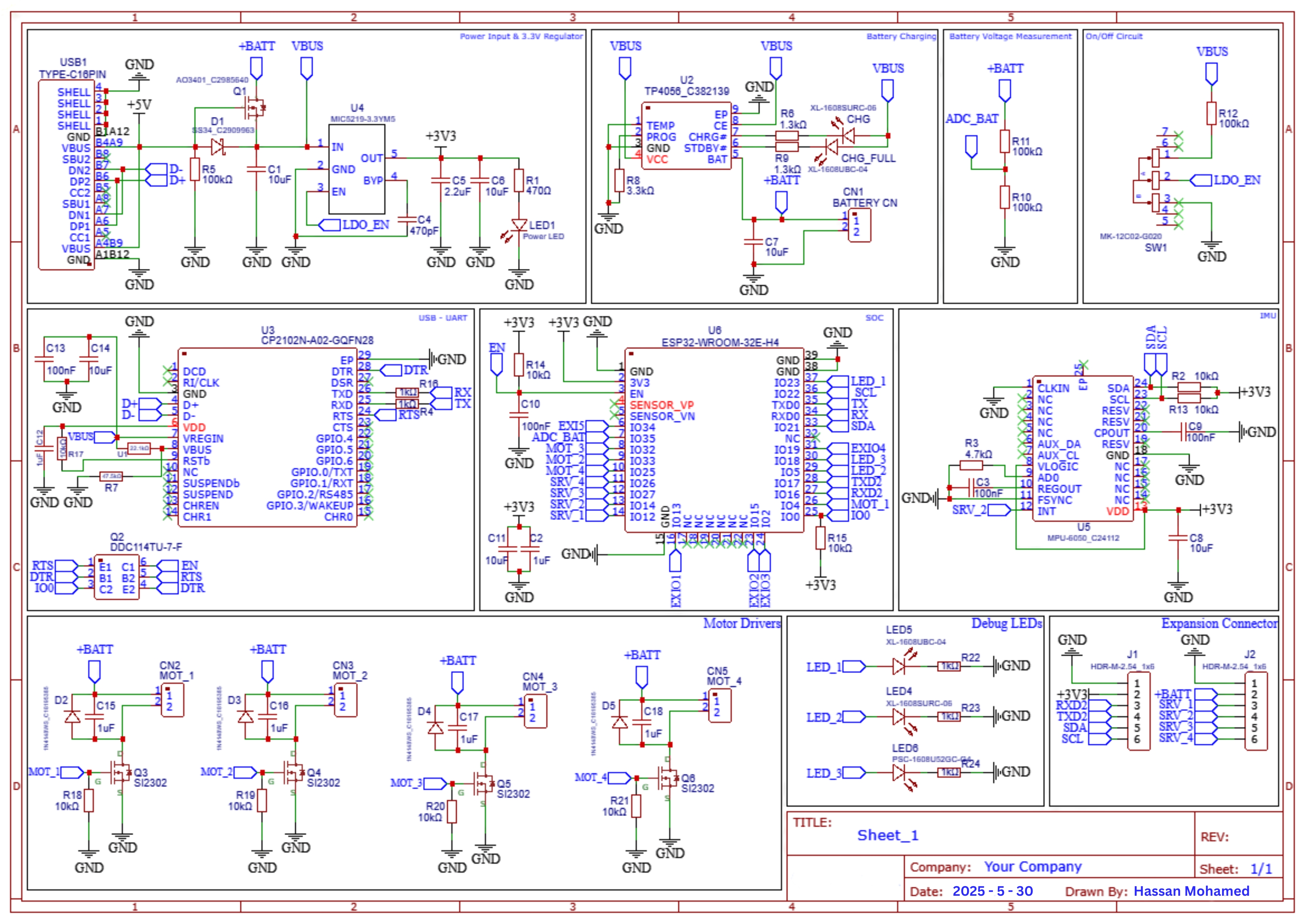

Time Spent: 3 hours Activities: - Installed and set up KiCad - Started designing the schematic for the circuit - Researched microcontroller options (leaning towards STM32 or ATmega328P)

Media:

June 2, 2025

Time Spent: 2 hours Activities: - Started component footprint placement on PCB - Ensured proper sizing for ESC pads and XT60 connector

Media:

June 8, 2025

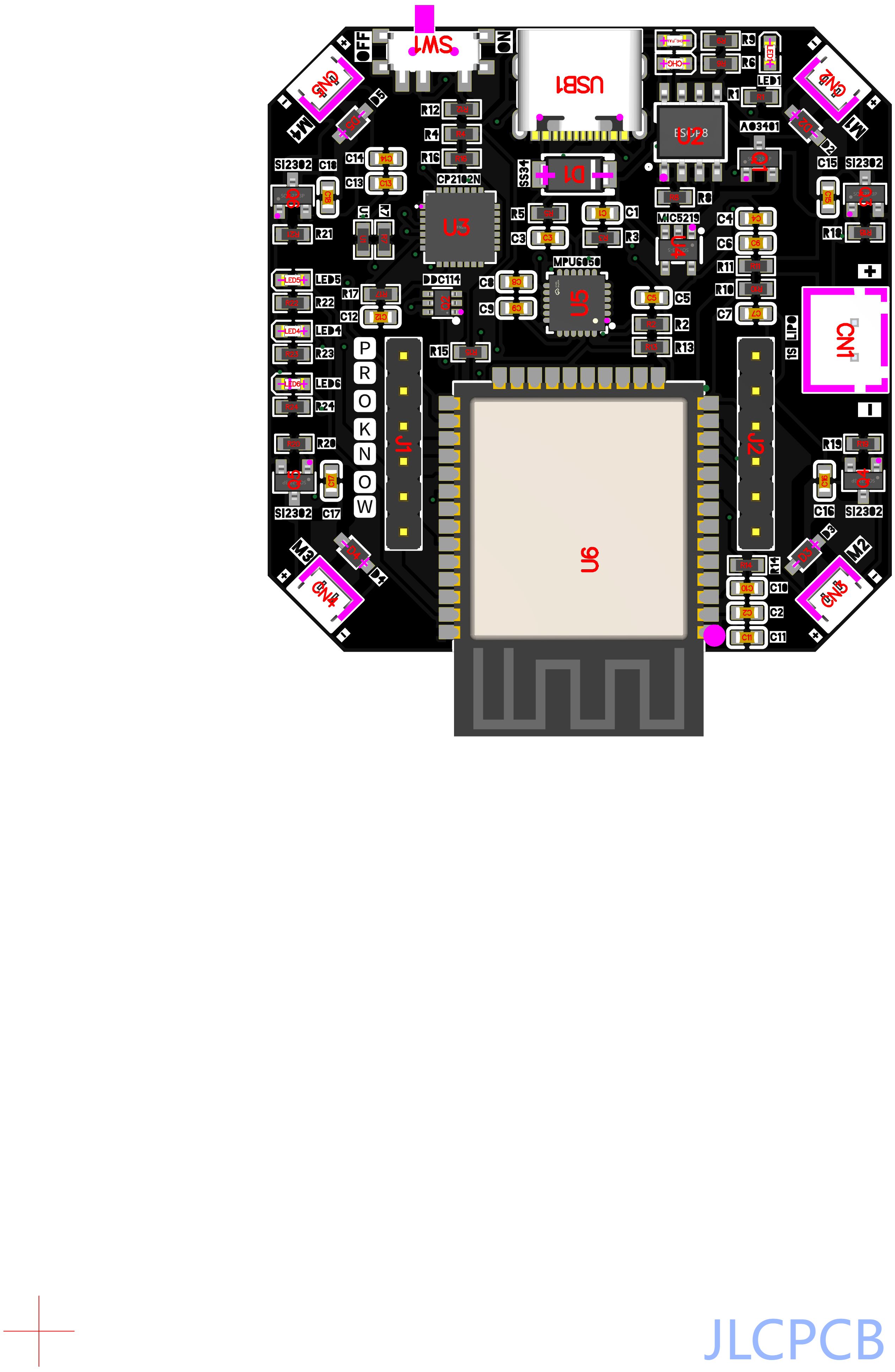

Time Spent: 3 hours Activities: - Finalized PCB layout - Ran DRC checks - Generated Gerber files and prepared for JLCPCB order

Media:

June 11, 2025

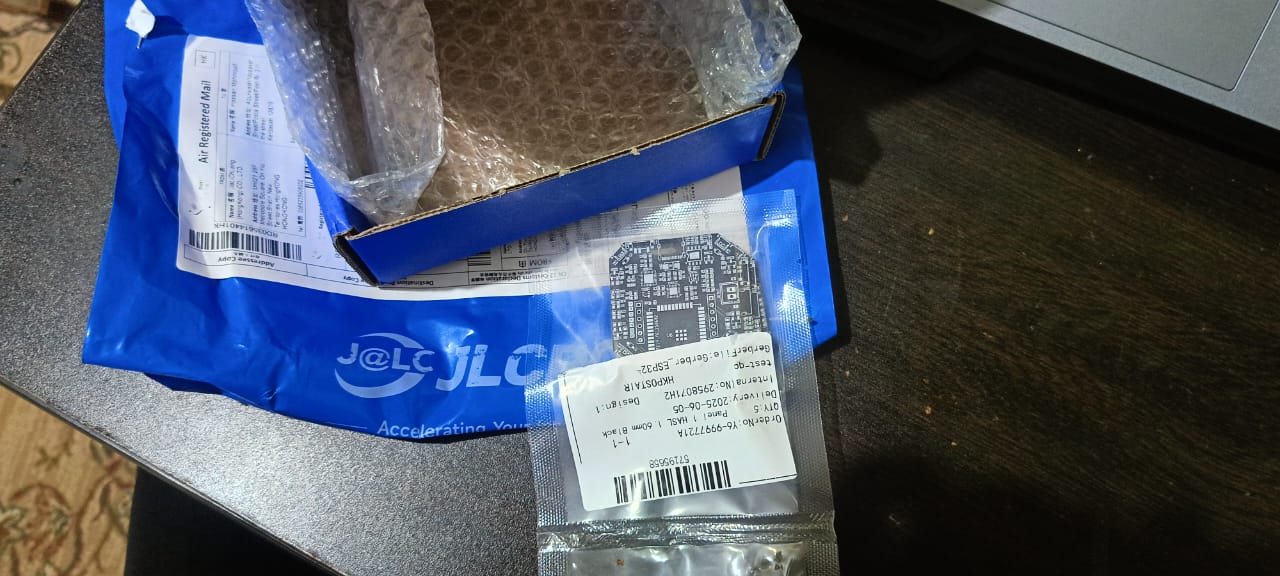

The PCB arrived from the JLC

Media:
