Sliphub
Created by
@ila-io
July 23rd
today i did some researach on USB hubs... initially i planned on having 2 USB A, 1 USB C, and 1 HDMI, but i learned that it was probably wise to avoid HDMI due to the complications that arise from implementation, so now its just another USB C port making for 1 of each type!

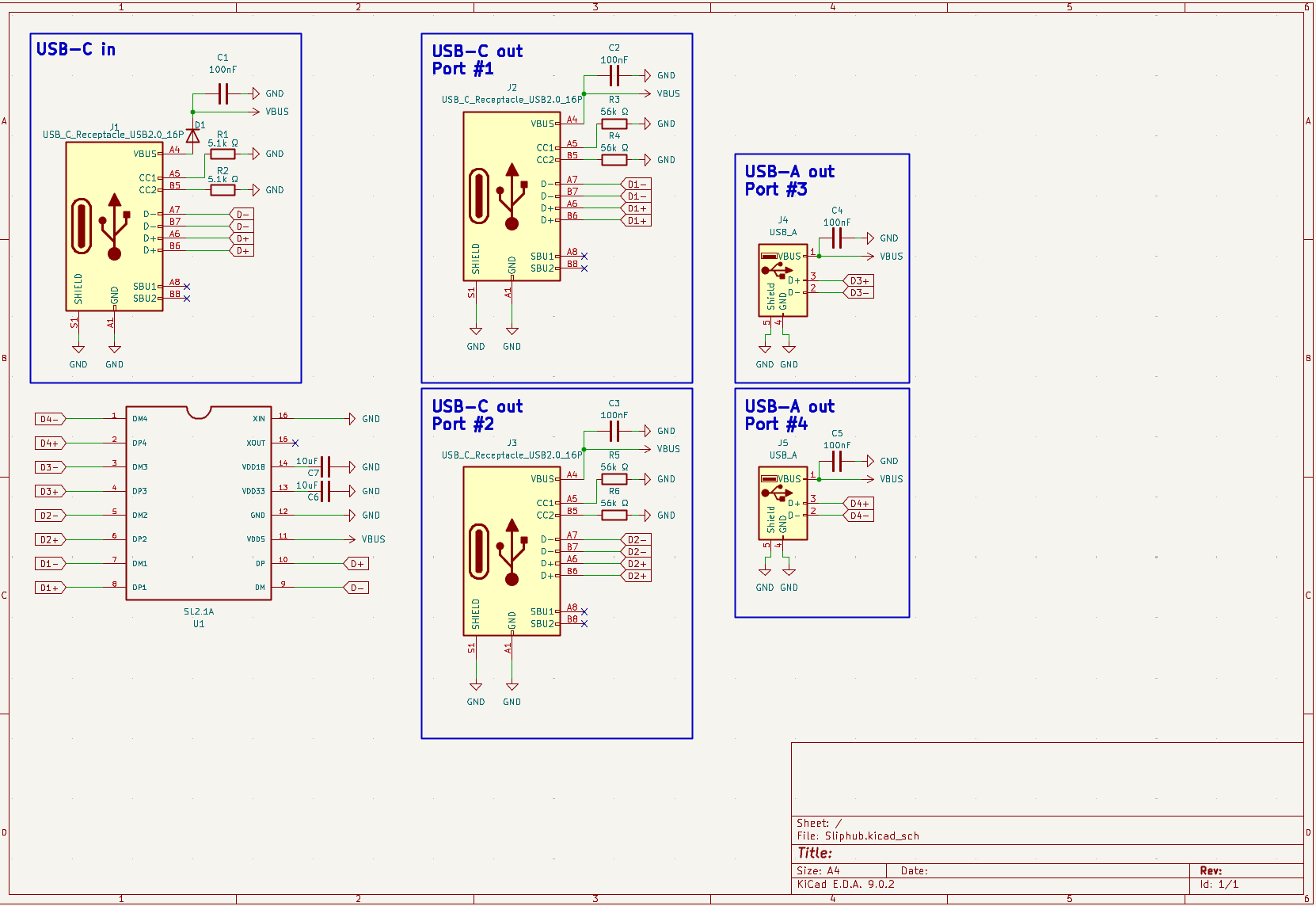

additionally i created my schematic :3
hours spent: 4
July 24th

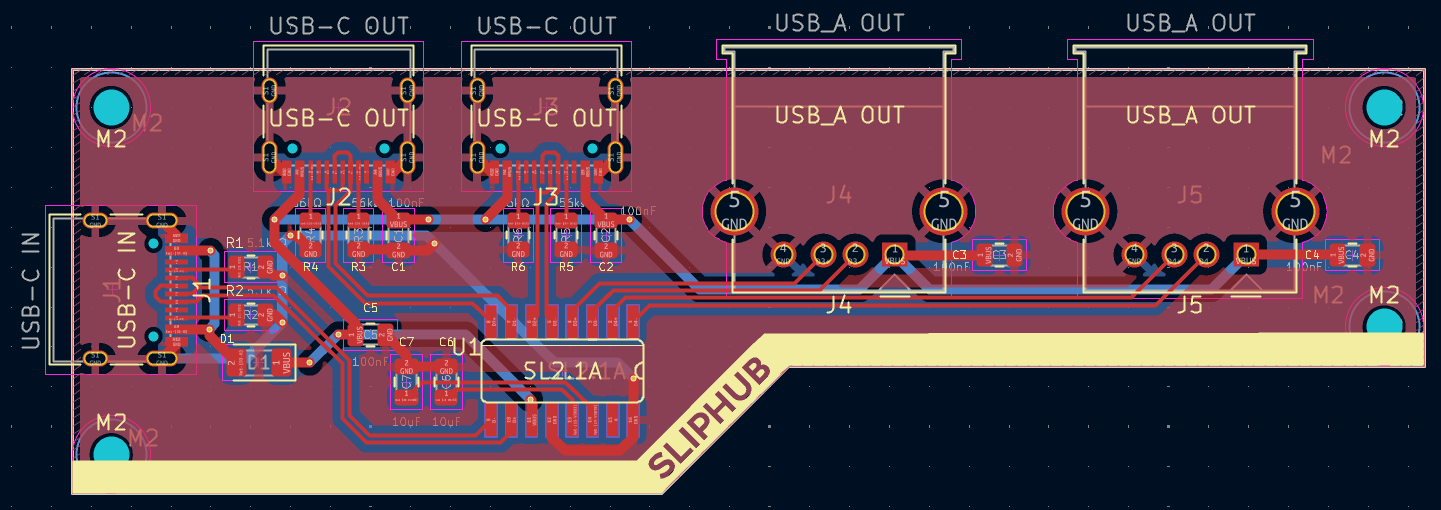

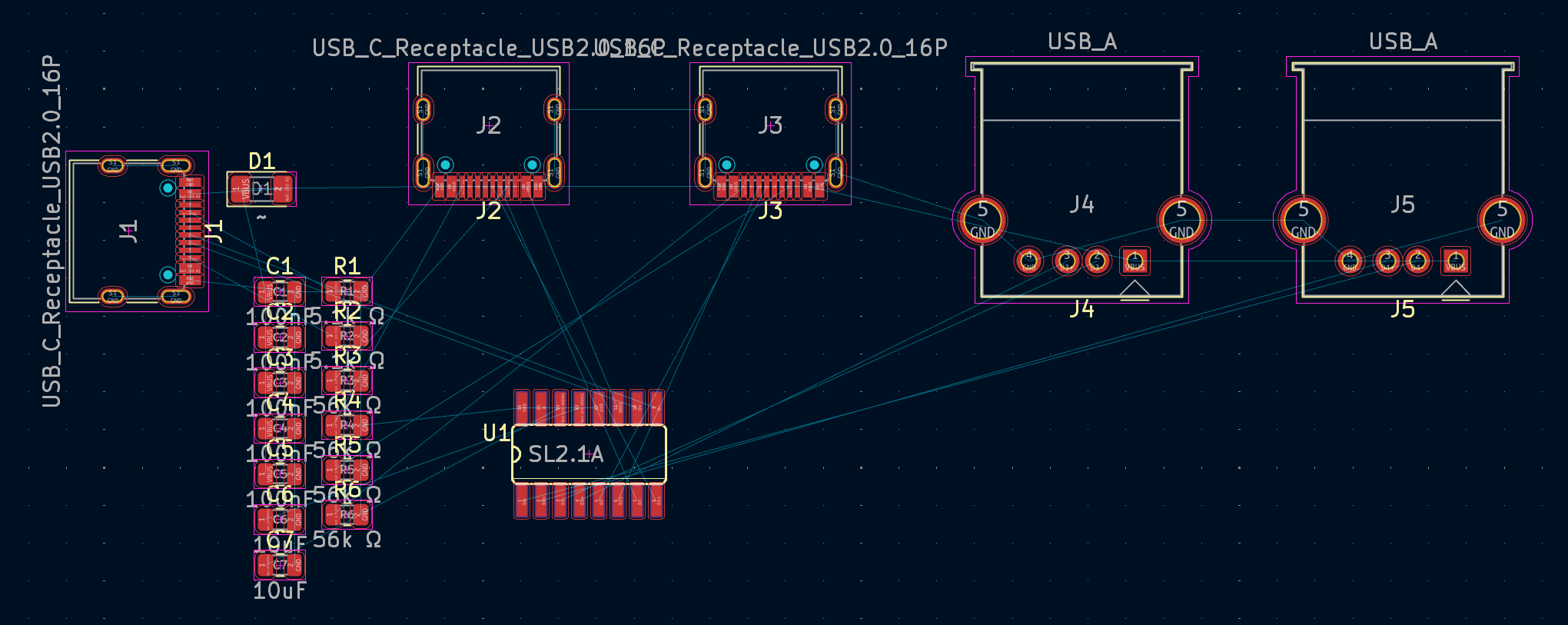

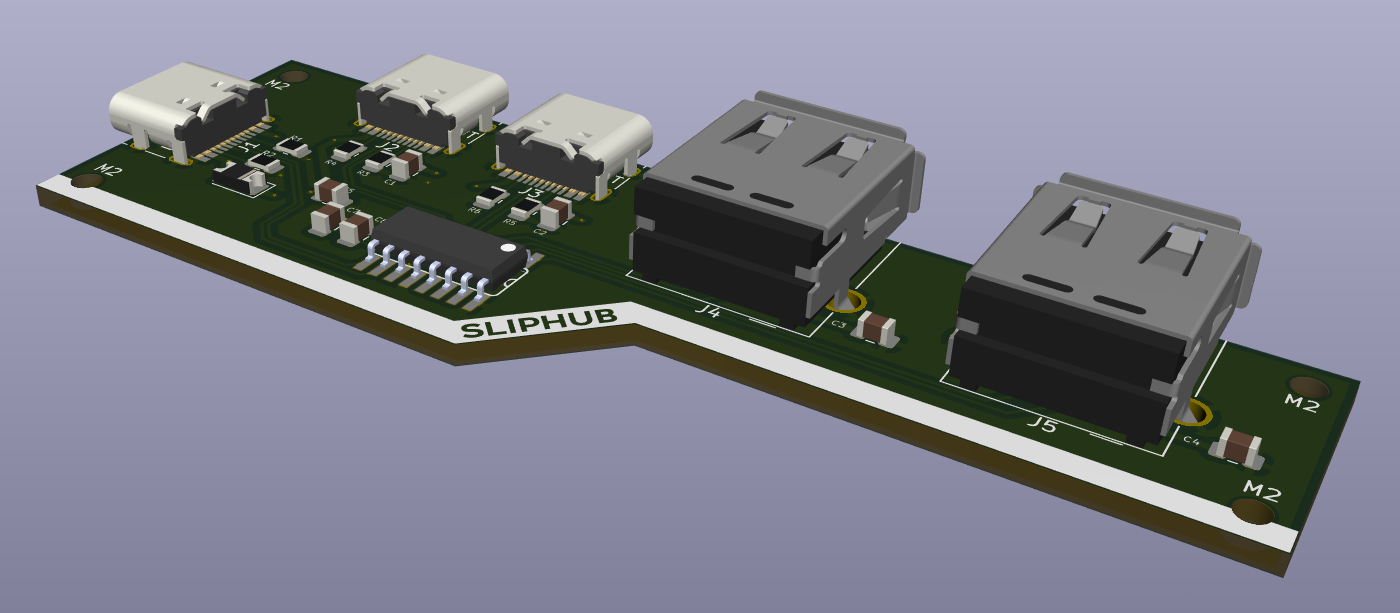

routed my pcb today!

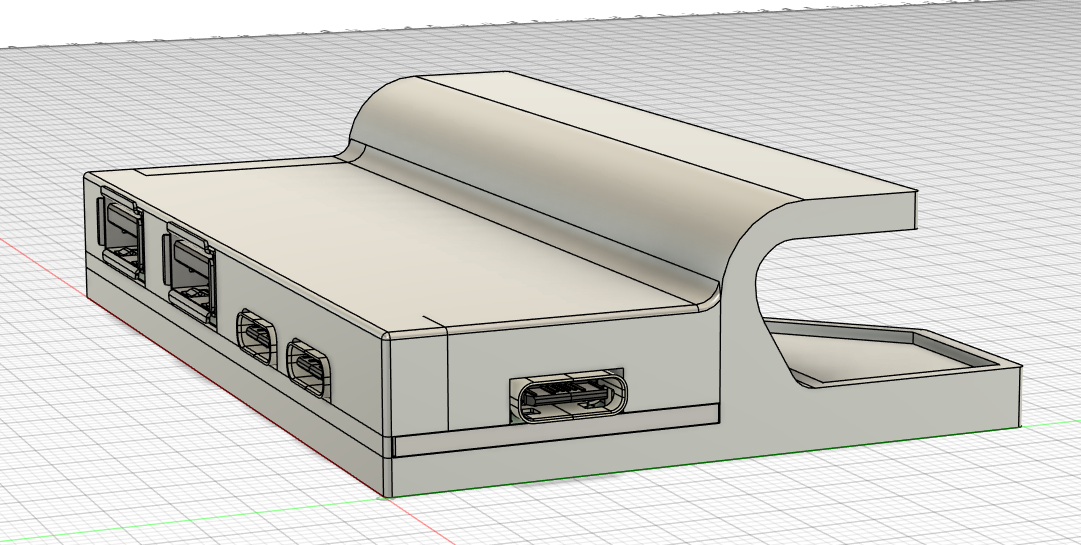

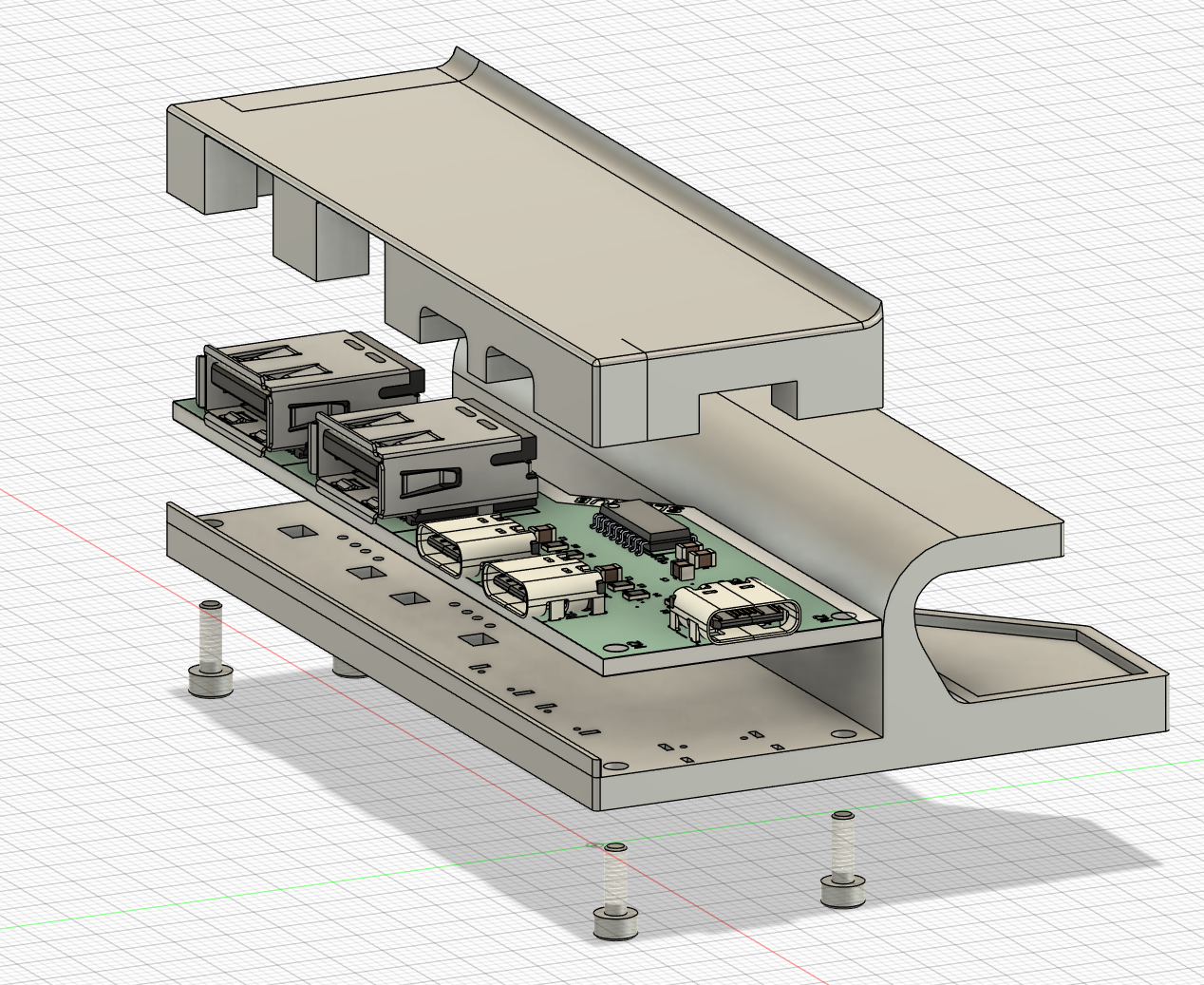

after that i made my case in fusion too! its supposed to mimic the look of my slipboard hackpad, since im trying to build out a cohesive ecosystem of accesories for my surface pro!
now i'm all done, just have to upload all the files to github and submit!
