Mix

Total Hours: 13

title: Mix author: rowyn description: A multifunctional digital audio mixing console

created_at: 2024-06-6

Getting it started: 7/8

Hours: 3 Thought up the general concept; started a schematic

Getting it done: 7/9

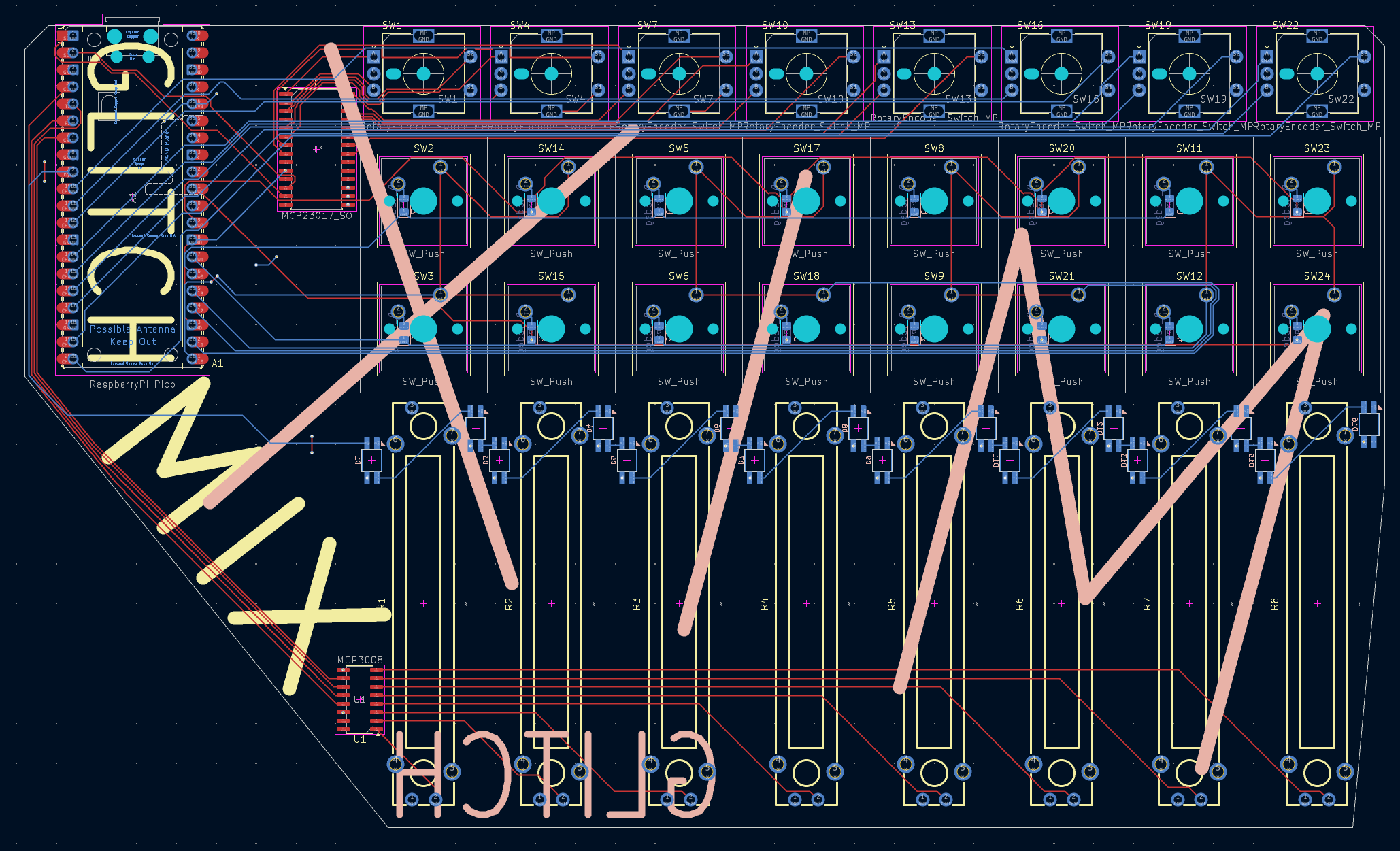

Hours: 5 Planned implementation, researched IO expanders and ADCs, finished schematic, made pcb. I chose not to make a case here, as my printer is currently having issues, and I am kind of a fan of the raw pcb aesthetic regardless.

Getting it done pt 2: 7/10

Finishing everything from the previous night Hours: 4

Realizing some issues: 7/31

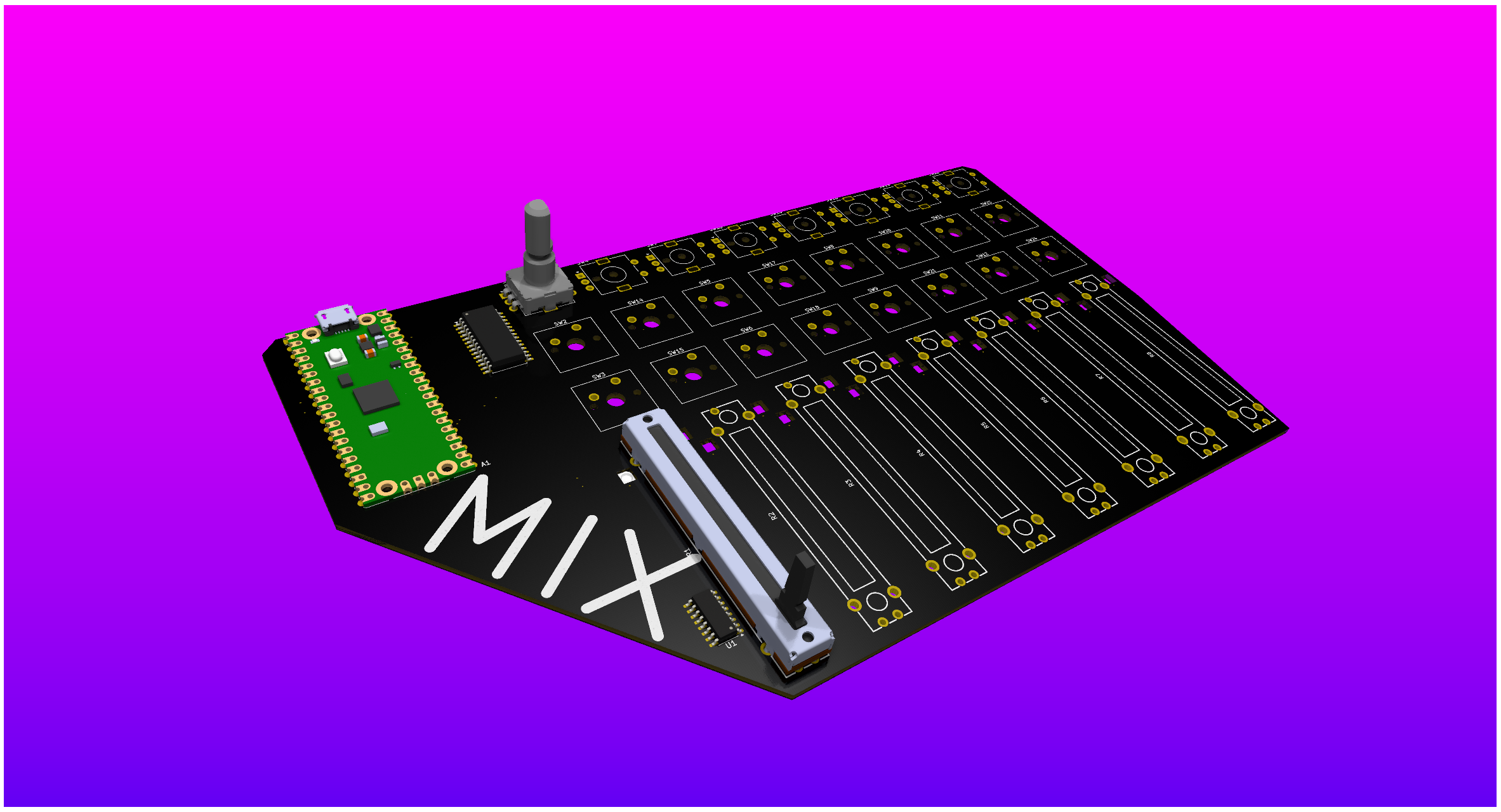

Turns out some of the parts I initially selected were out of stock on LCSC, so I had to speedrun redoing part of the schematic, PCB, and adding the 3d models in the little bit of time I had throughout the day. I ended up getting it submitted at 11:59 PM EST, in the last few seconds before the deadline. I also added the 3d models of as many parts as I could (just one of each for limited time). I got the BOM finished, all the images saved, wrote a README, and submitted all in slightly less than an hour (locked tf in). Hours: 1
