Total time spent: 10.5

(Likely will increase after I get the parts cuz FPGAs are kind of a nightmare)

May 22nd: Starting!

Hello, today I started writing my project pitch. I created my BOM and look at some other projects for inspiration.

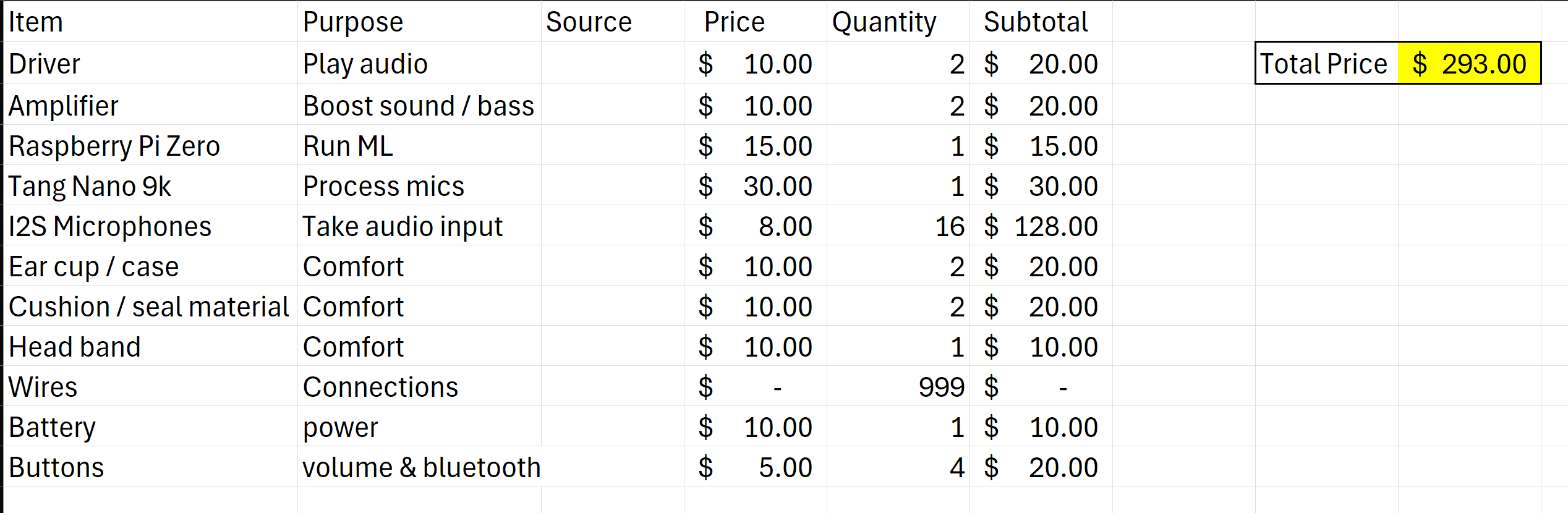

Here's what I have so far: 5/22/2025 BOM

I want to create something that can listen to omnidirectional audio and significantly clean up the output. I hope to help people with hearing problems.

Time spent: 1 h

June 13th: Finished the headphone CAD

Today I used OnShape to design the electronic housing + headband.

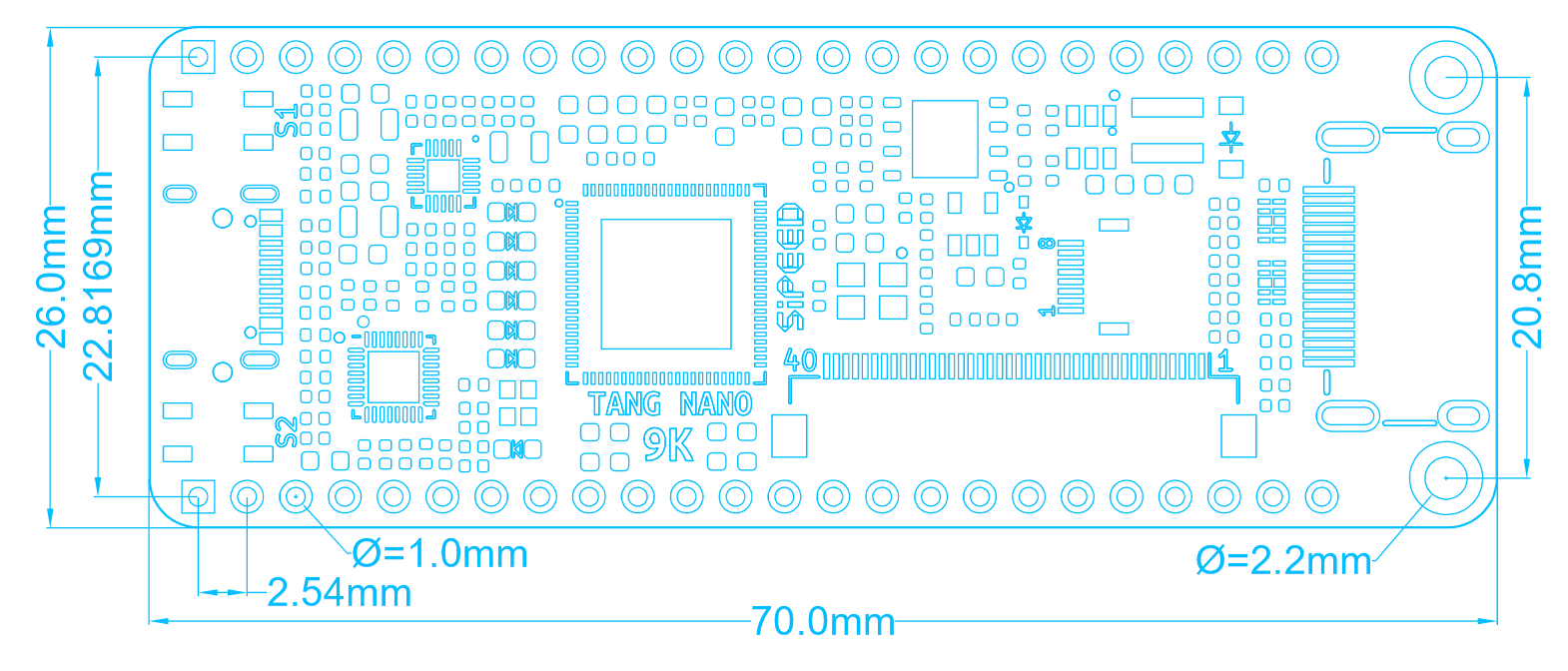

The Tang Nano 9k is the largest item I anticipate using and thus I designed the ear cup around it. Here's a picture for the size of the Tang Nano 9k:

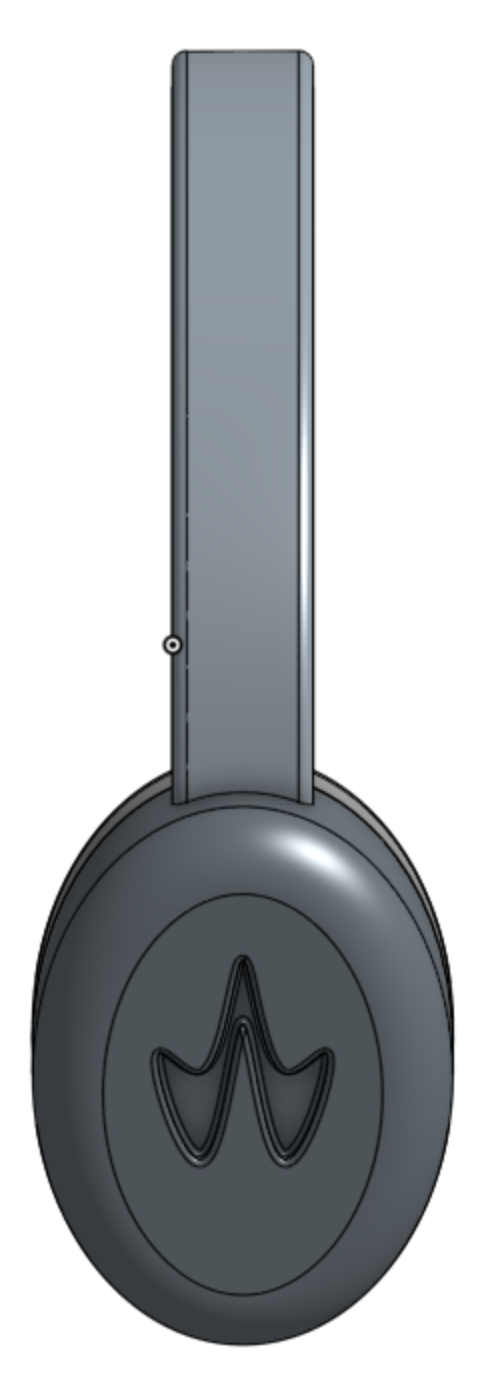

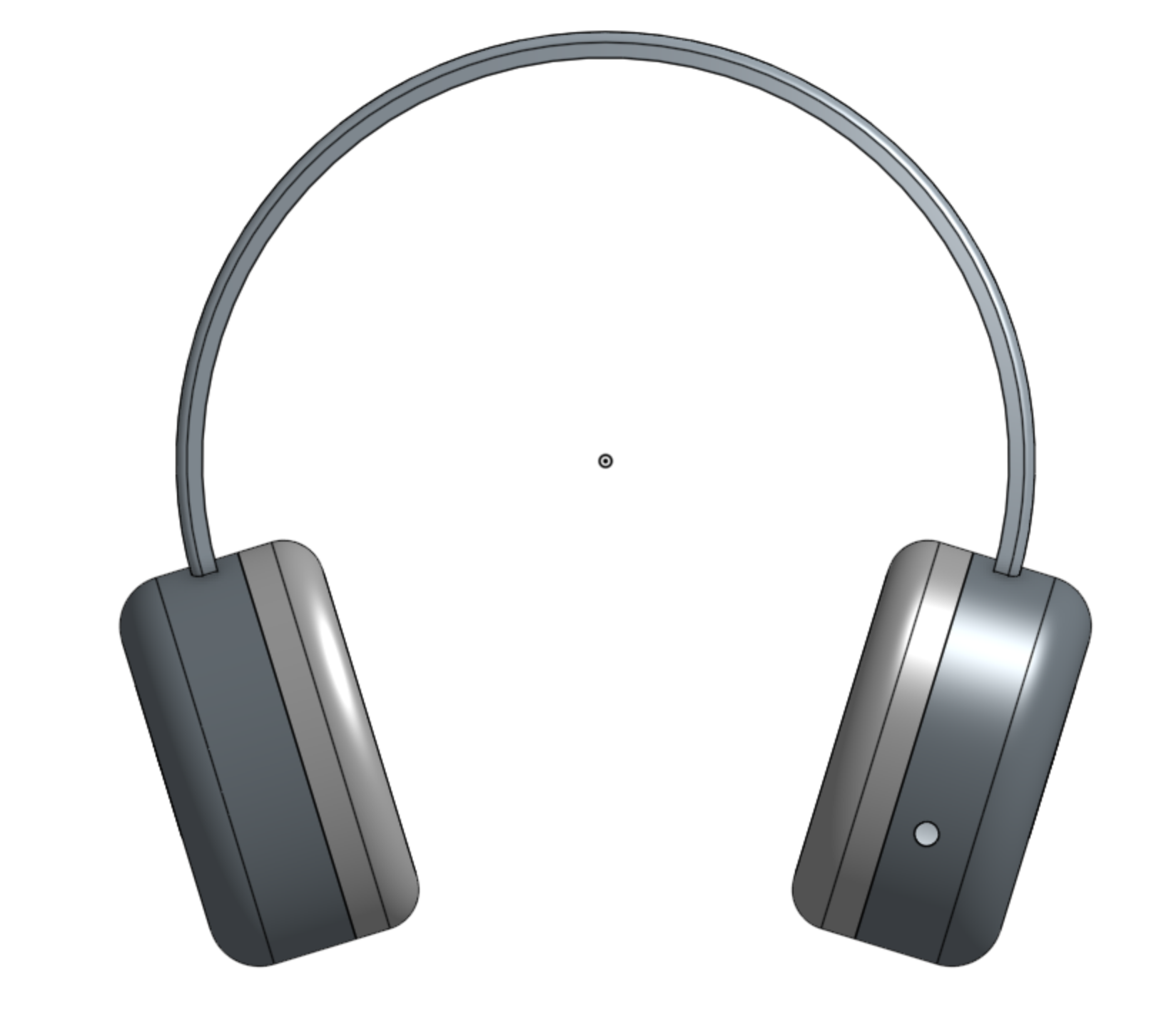

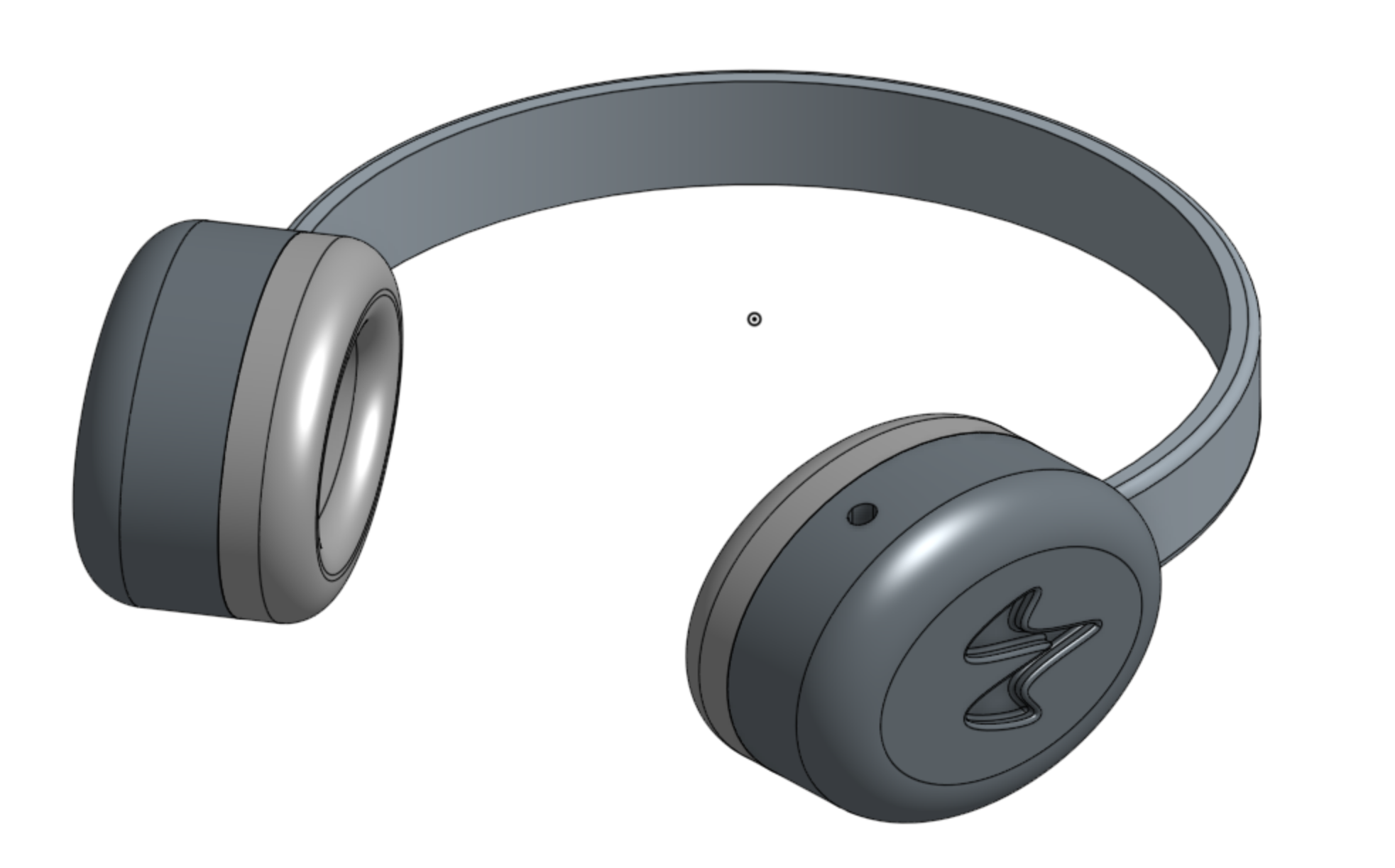

Here's what the headphones look like. I like the logo! top side southeast

Also, I started the schematic. I imported the Raspberry Pi Zero W onto the schematic and tried finding the footprint for the Tang Nano 9k but I wasn't able to :/ Guess I'll continue tmr?

Time spent: 4.5 h

June 14th: Continued working on Schem

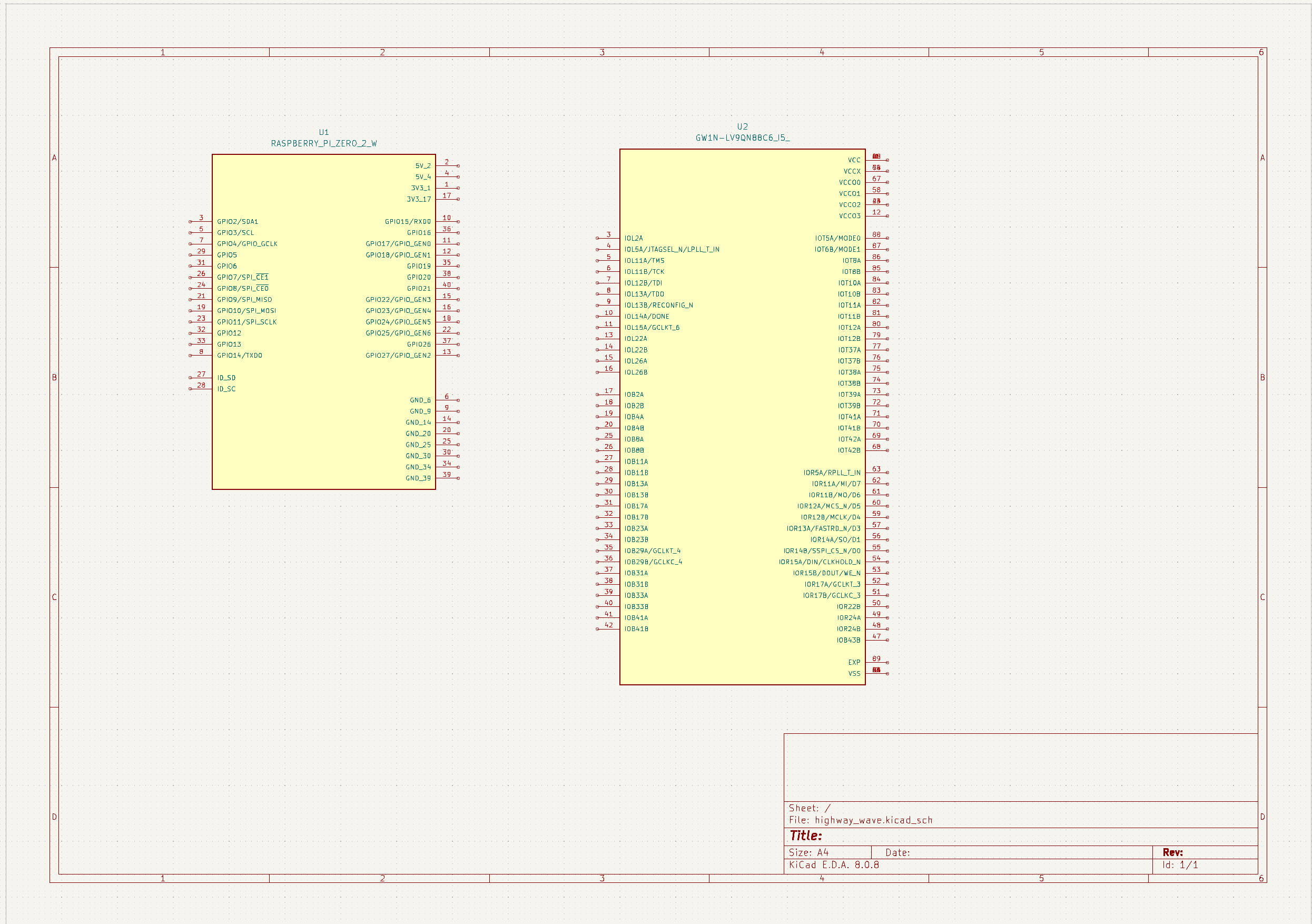

There isn't any existing footprint for the Tang Nano 9k so I figured the Gowin chip it uses would be a sufficient representation of the board. Here's what the schem looks like so far:: Schem on 6/14/25

I also did research on the most appropriate driver for my application. Here are some quick facts: Dynamic (Most common) - Electromagnet causes voice coil to vibrate for sound waves - What does resistance have to do with the quality?

Planar magnetic - Need amp

Balanced armature - Small build for in-=ear monitors - Pivot between two magnets to make sound

Electrostatic - Static charge applied to thin film between two pieces of metal - Free from secondary distortion - Expensive compared to others

Piezoelectoric - Voltage applied to crystal or ceramic

Bone-Conduction - Vibrate bones - Sound leakage

I think dynamic drivers are the best for me since I want to focus more on the software aspect rather than experiment with driver quality. Dynamic drivers are well established and have tons of documentation. However, I still need to figure out which model to buy...

Time spent: 1.5 h

June 19th: FINISHED Schem

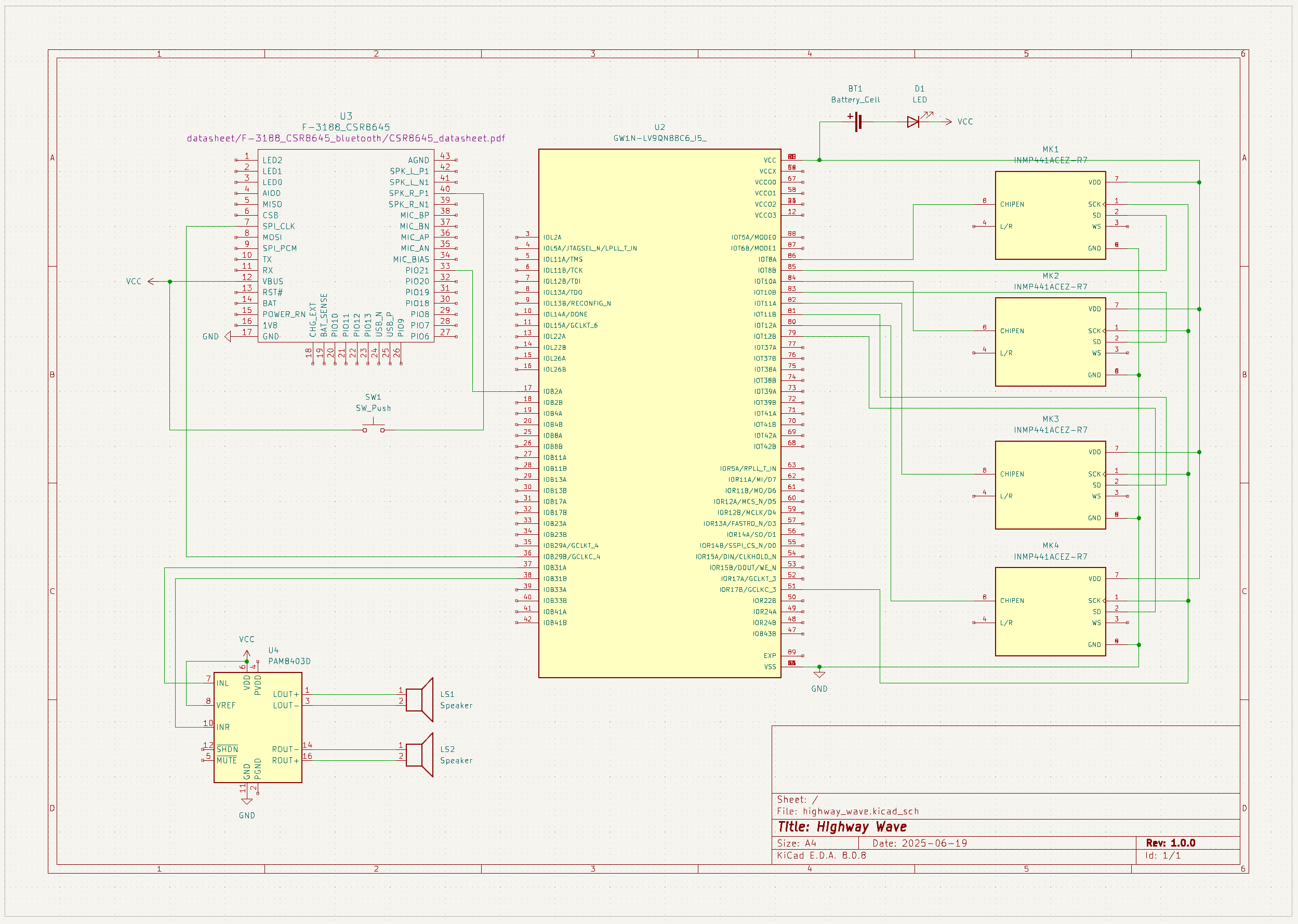

OH MY GOD THIS TOOK ALL DAY. schem

I updated the BOM with the component names and found footprints for all essential items. This in itself took maybe 2 hours to finish especially because I was a little indecisive and sometimes the footprint was just pay-walled :/

Anyway, after I finished finding all the kicad.sch files, I looked up datasheets an added it to the reference_files folder. I used these datasheets in figuring out how to wire these items.

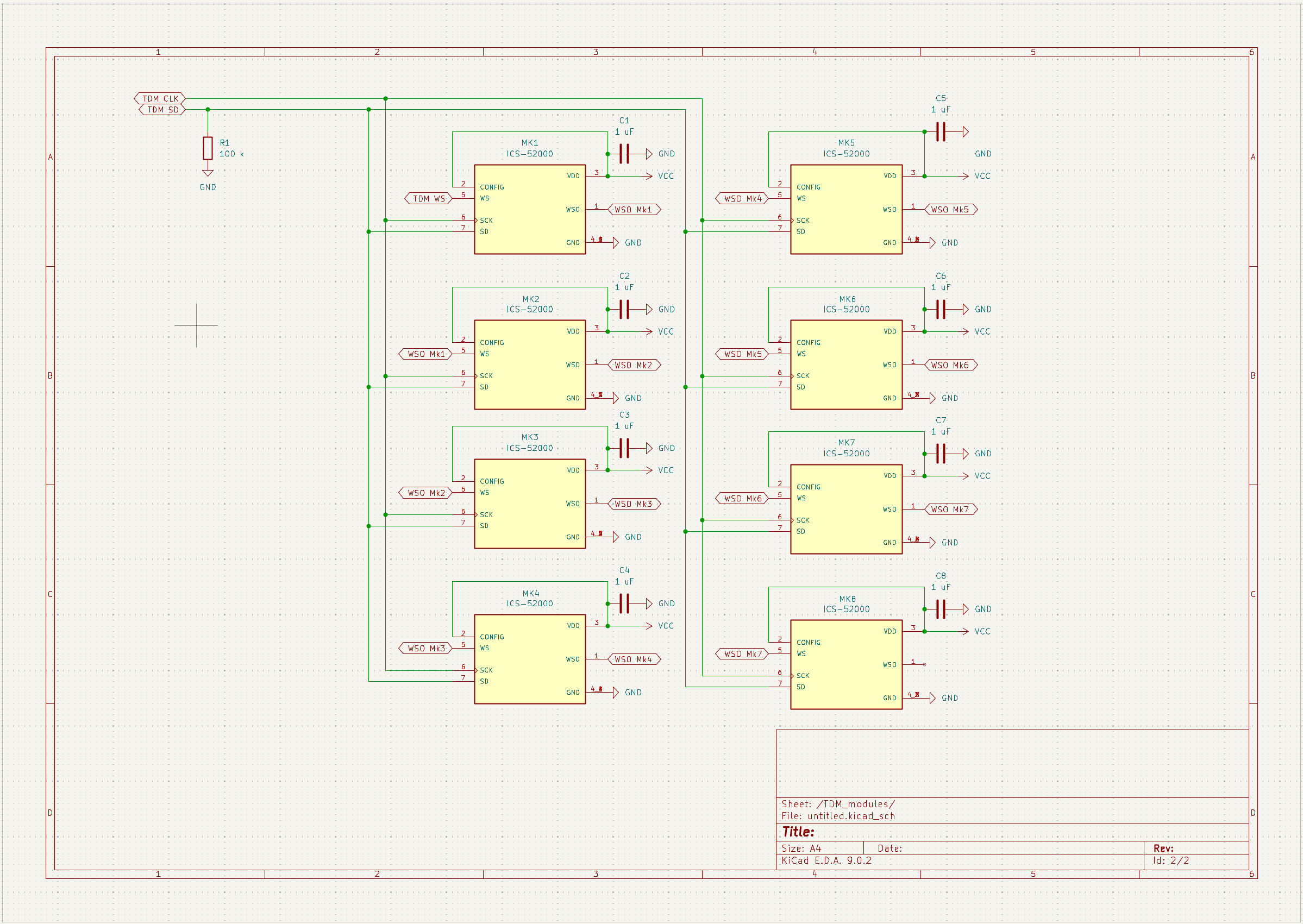

My BOM requests 16 I2S mics but I only wired 4 on the schem to conserve space. All of them would be wired in the same way and do essentially the same operation.

There's a bunch of software things I need to figure out once I get all the stuff so yea.

Time spent: 3.5 h

June 22nd: Revised schem

My entry was rejected I think? But I needed to simplify it a bit anyway.

I think I'm gonna move away from FPGA to make the project more feasible. Cool idea but idk how to implement it.

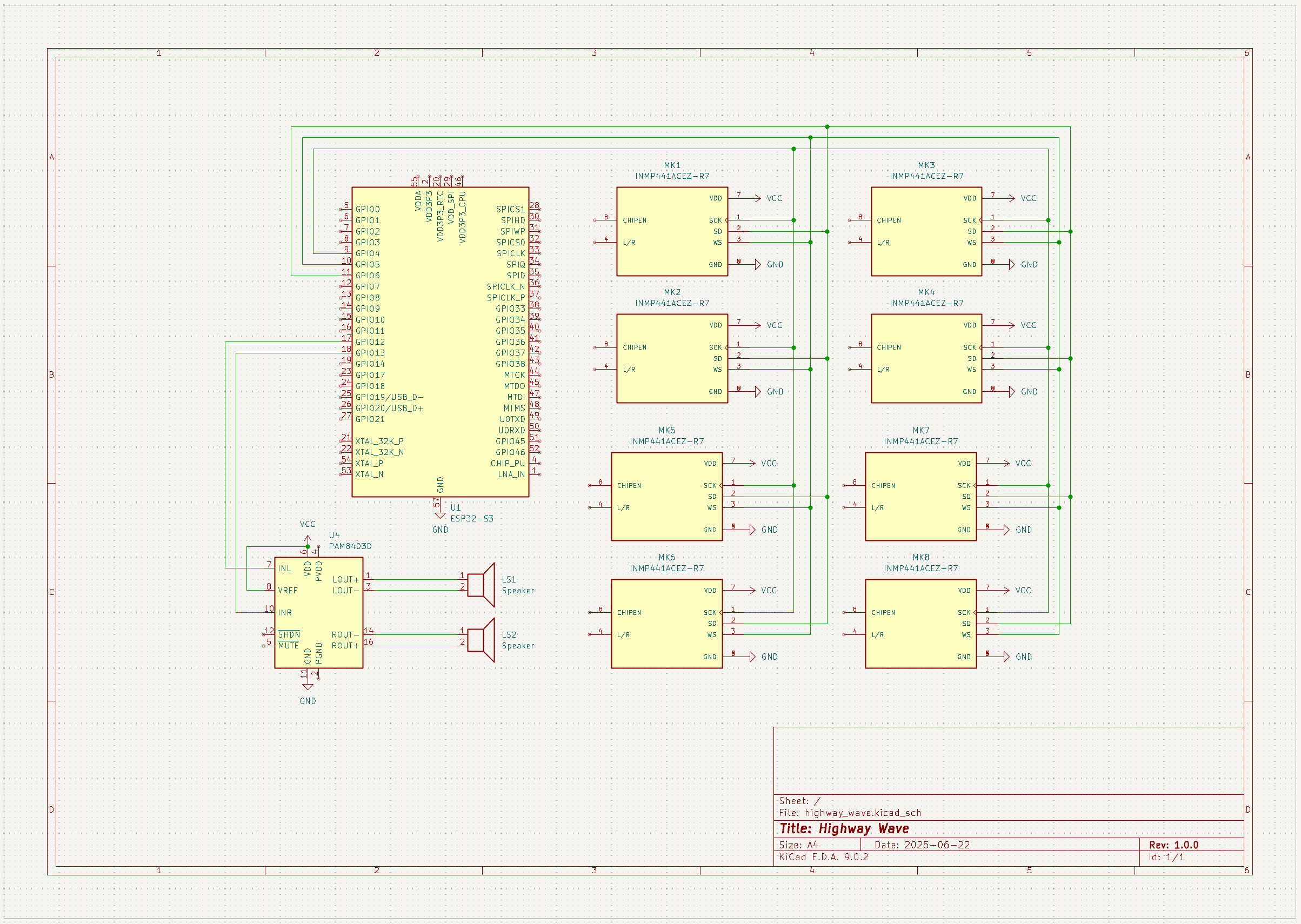

Here's the schematic as of now: schem

I reverted back to an ESP32-S3 cuz that's what I'm familiar with. Plus, it has TDM support so I can get low latency audio using I2S mics. Most of the time spent today was just on researching appropriate approaches to this project.
