Yet Another Metronome by Sreekar

June 4th, 2025, 6:32 PM
I have a vision for where I want to take this project, but since I have finals tomorrow i'll just get a basic schematic whipped up (i have no idea what i'm doing)
literally like 30 seconds spent 😭

June 9th, 2025, 3:17 PM
I did not in fact get anything done but finals are over so i can probably actually get started today

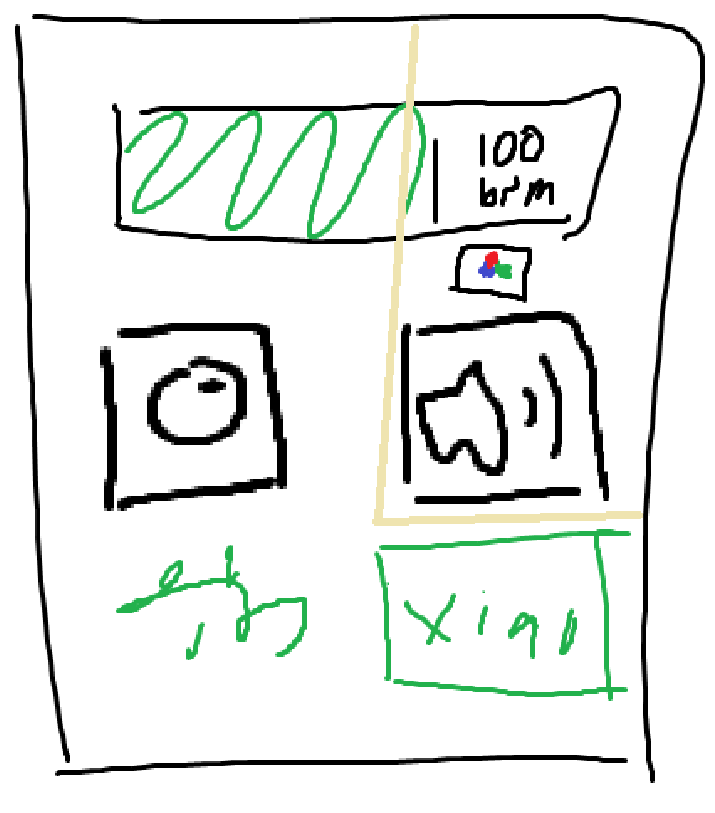

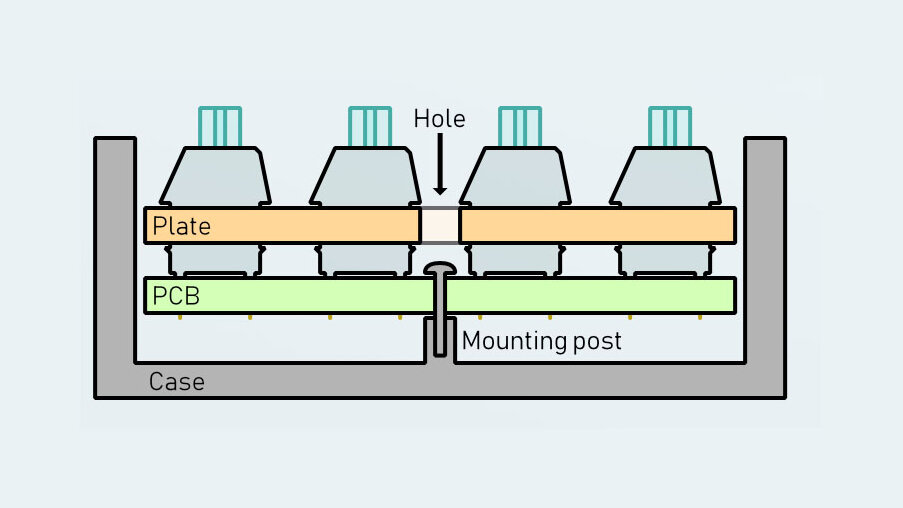

hear me out tabletop flat design cause i'm scared of 90°, plate for mx switches and an oled cause i'm overconfident, but first let's get a basic pcb done
wait no hear me out: rotary encoder. to encode your rotary movement. amirite amirite?
1 hour spent

June 12th, 2025, 9:01 PM
ok time to wire up the oled and rotary encoder
zawg how do i power ts
ohhhh now i know the difference between vsys, vbus, and 3v3
it's all wired in the schematic :yay:
now time to find a speaker that's loud and preferably not expensive (good cheap fast ahh)
oops i had the times i spent written in obsidian but not here better add those in
alr i got a somewhat coherent schematic together i'm going to sleep now
2 hours spent

June 13th, 2025 12:04 PM
if you're reading the actual markdown for some reason i must apologize for the way i format this
so i want to put an led on here for visual feedback
i could use just a single led or i could use a neopixel :wow:
i think for the led i could just give it power every x ms and put a resistor in front of it
after further research, i've decided to just use a single neopixel
time to go back to the schematic
1 hour spent 😭

June 13th, 2025 5:14 PM

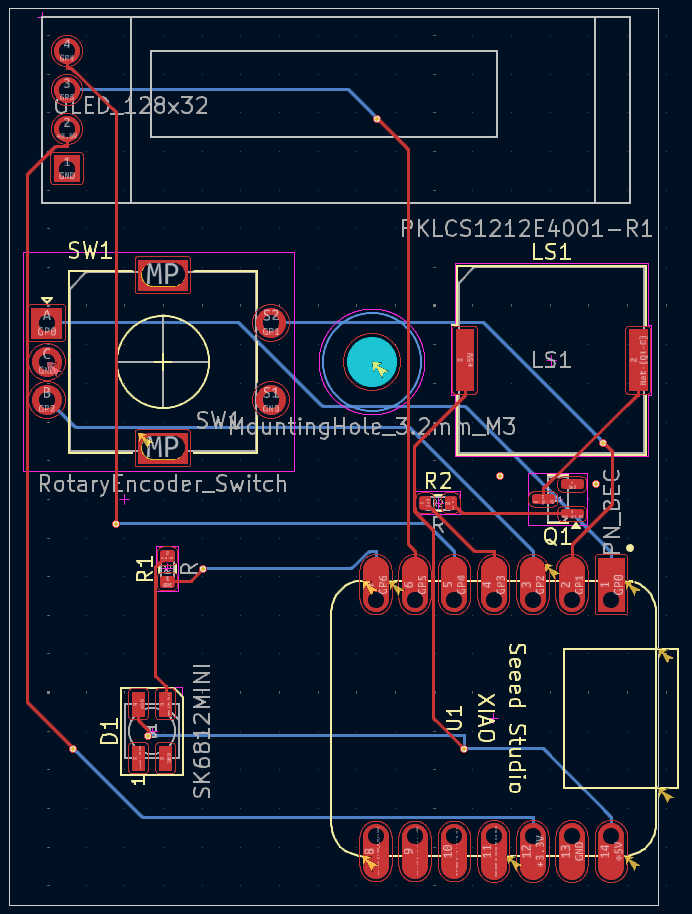

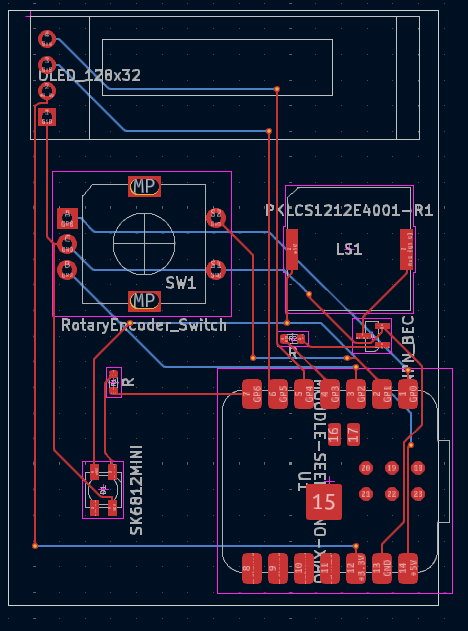

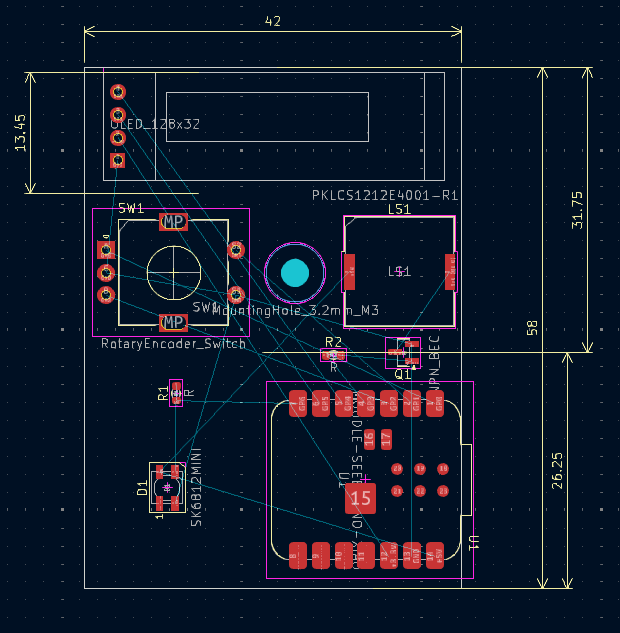

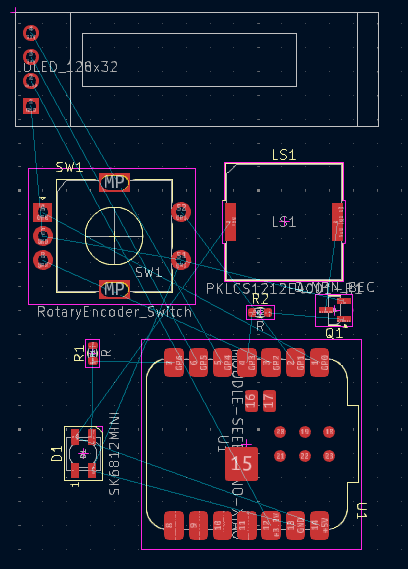

i guess it's time to pcb all over the place
