PCB Mill
Created by
[Vibhu Siddha]
• Started on June 16, 2025

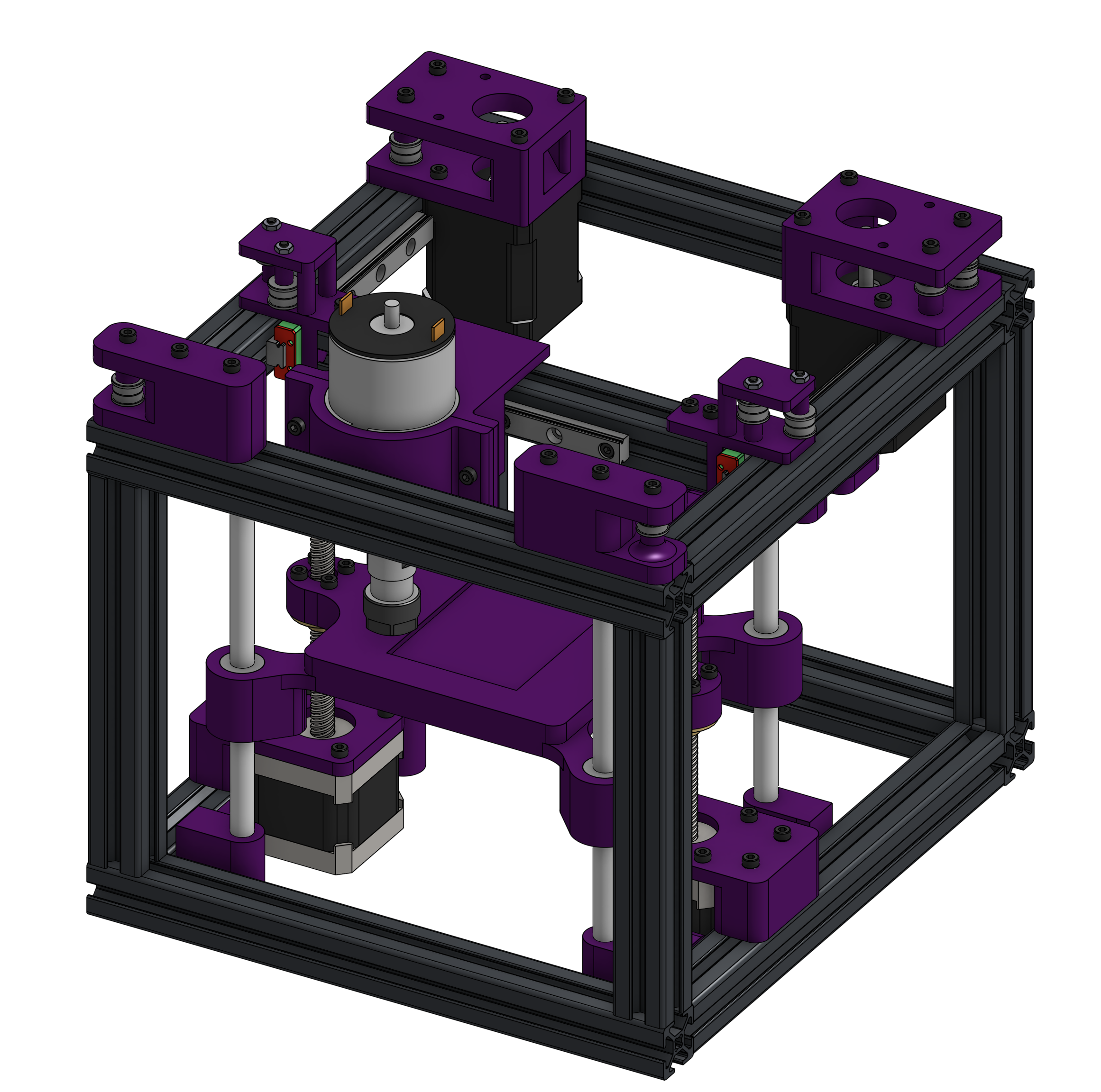

A desktop PCB mill designed for 50x70mm PCBs!
Total time: 13 hrs
July 31 - 1 hr

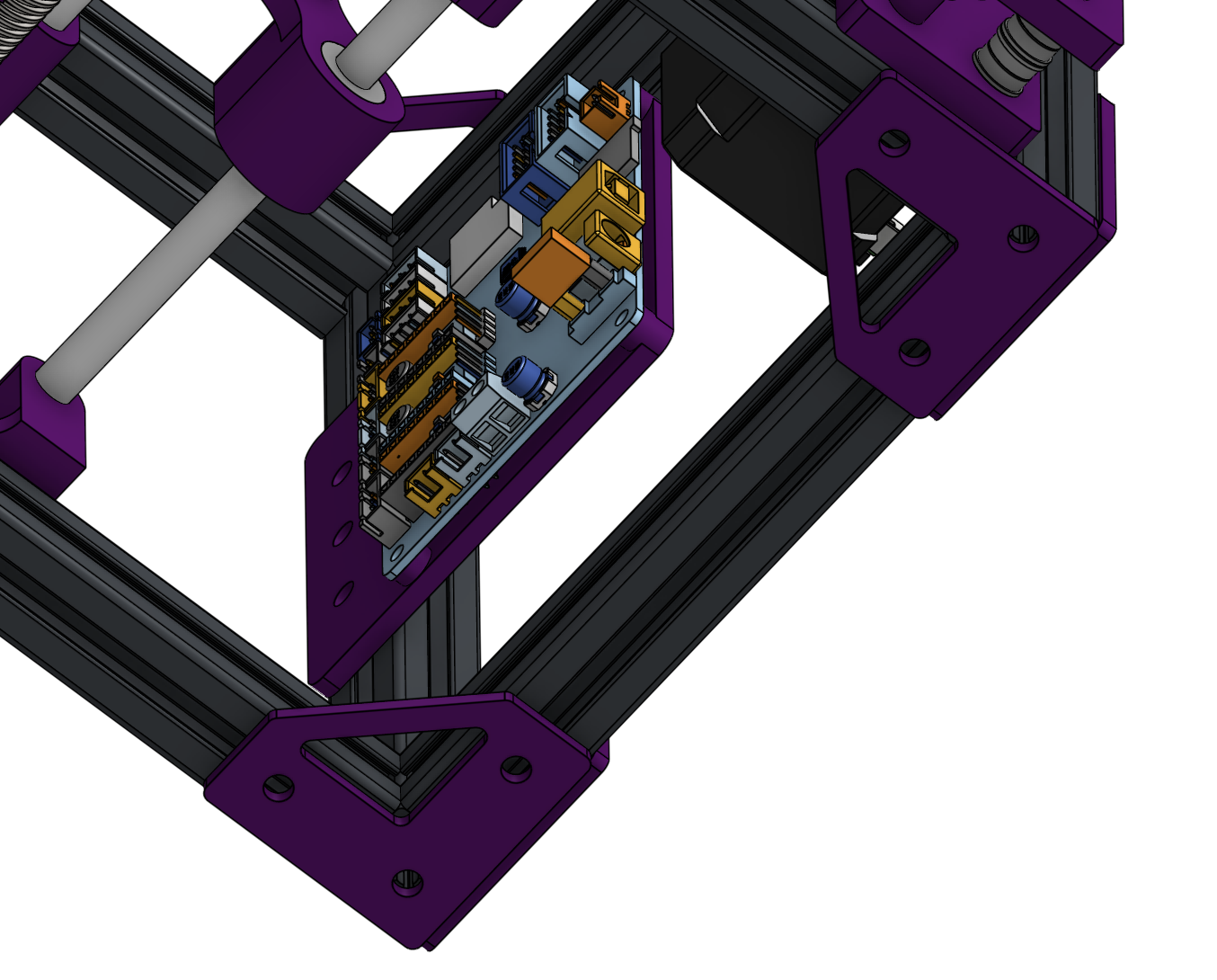

Added corner brackets to hold corners together and electronics mount, updated bom with psu and m5 screws.
July 19 - 3 hrs
Finished BOM, added all screws, finished assembly of the z-axis.
July 8 - 2 hrs
Worked on the z-axis design.
June 30 - 4 hrs
Finished the y-axis for the PCB mill! I noticed there was an issue with the linear rails in the configuration, so I edited them. I designed all of the motor mounts and idler mounts and edited the the x-axis idlers.
June 24 - 3 hrs
Finished the x-axis for the PCB mill! Added the linear rail for the 775 spindle, and the parts to mount the spindle to linear rail.
